The recommended PCB layout involves placing the device on a 2-layer or 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A thermal pad on the bottom of the device should be connected to a copper plane on the PCB. For optimal thermal management, ensure good airflow and consider using a heat sink or thermal interface material.
To ensure the device operates within the specified temperature range, provide adequate cooling, avoid overheating, and keep the device away from heat sources. Monitor the device's temperature using the thermal monitoring pin (if available) and adjust the system design accordingly.
The device has built-in ESD protection, but handling precautions are still necessary. Use an ESD wrist strap or mat, handle the device by the body or pins, avoid touching the pins, and store the device in an anti-static bag or container.
The device is designed to withstand normal vibration and shock, but extreme conditions may affect its performance or reliability. Consider using additional mechanical support, such as a bracket or potting, and ensure the PCB is securely fastened to the system.
To troubleshoot issues, start by reviewing the system design and PCB layout, checking for proper power supply, signal integrity, and thermal management. Use oscilloscopes or logic analyzers to monitor signals, and consult the datasheet and application notes for guidance. If issues persist, contact Flex Ltd support or a qualified engineer for assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BMR4631002/001 Overview

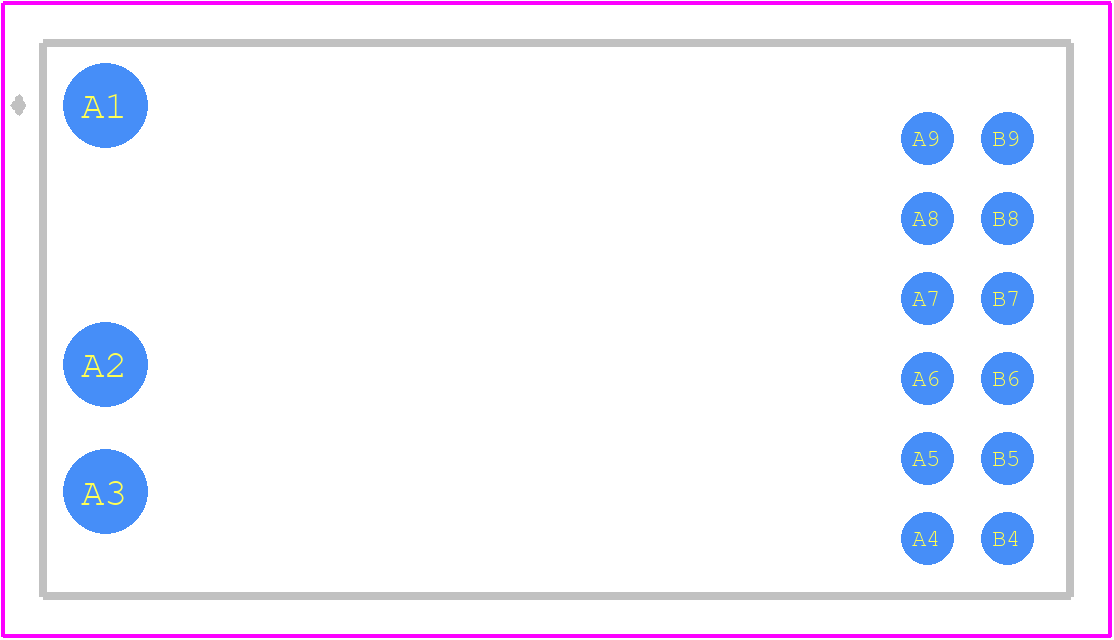

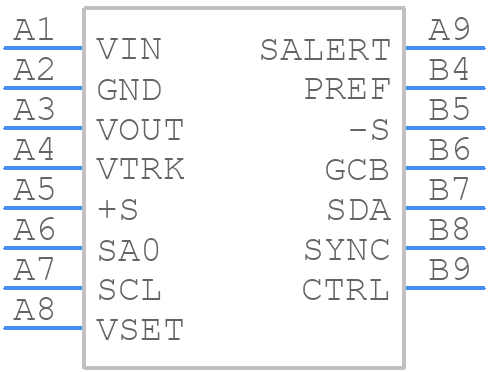

Use the download button to access the BMR4631002/001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BMR46,
or try a keyword search, such as Power Supply Modules
