OVER CURRENT; OVER VOLTAGE; OVER TEMPERATURE; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.03535 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
14.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
1300 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.08 s
Width:
36.8 mm
BMR4912510/871 Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal management for the BMR4912510/871 involve using a multi-layer PCB with a solid ground plane, placing the component on a thermal pad, and ensuring good airflow around the device. A thermal via array under the component can also help to dissipate heat.
To ensure reliability and longevity in high-temperature applications, it's essential to follow the recommended operating temperature range, use a suitable thermal interface material, and implement a robust cooling system. Additionally, consider using a thermally conductive adhesive and a heat sink to dissipate heat efficiently.
The recommended soldering conditions for the BMR4912510/871 include using a soldering iron with a temperature range of 220°C to 250°C, a soldering time of 3-5 seconds, and a peak temperature of 260°C. For rework, use a hot air rework station with a temperature range of 180°C to 220°C and a airflow rate of 10-20 L/min.
To troubleshoot common issues, start by verifying the PCB layout and thermal management, checking for proper component placement and soldering, and ensuring that the input voltage and current are within the recommended range. Use oscilloscopes and thermal imaging cameras to identify the root cause of the issue and make adjustments accordingly.
Yes, to minimize EMI/EMC issues, ensure that the PCB layout follows good EMI/EMC design practices, such as using a solid ground plane, placing decoupling capacitors close to the device, and using shielded cables for input and output connections. Additionally, consider using EMI filters or common-mode chokes to reduce electromagnetic interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BMR4912510/871 Overview

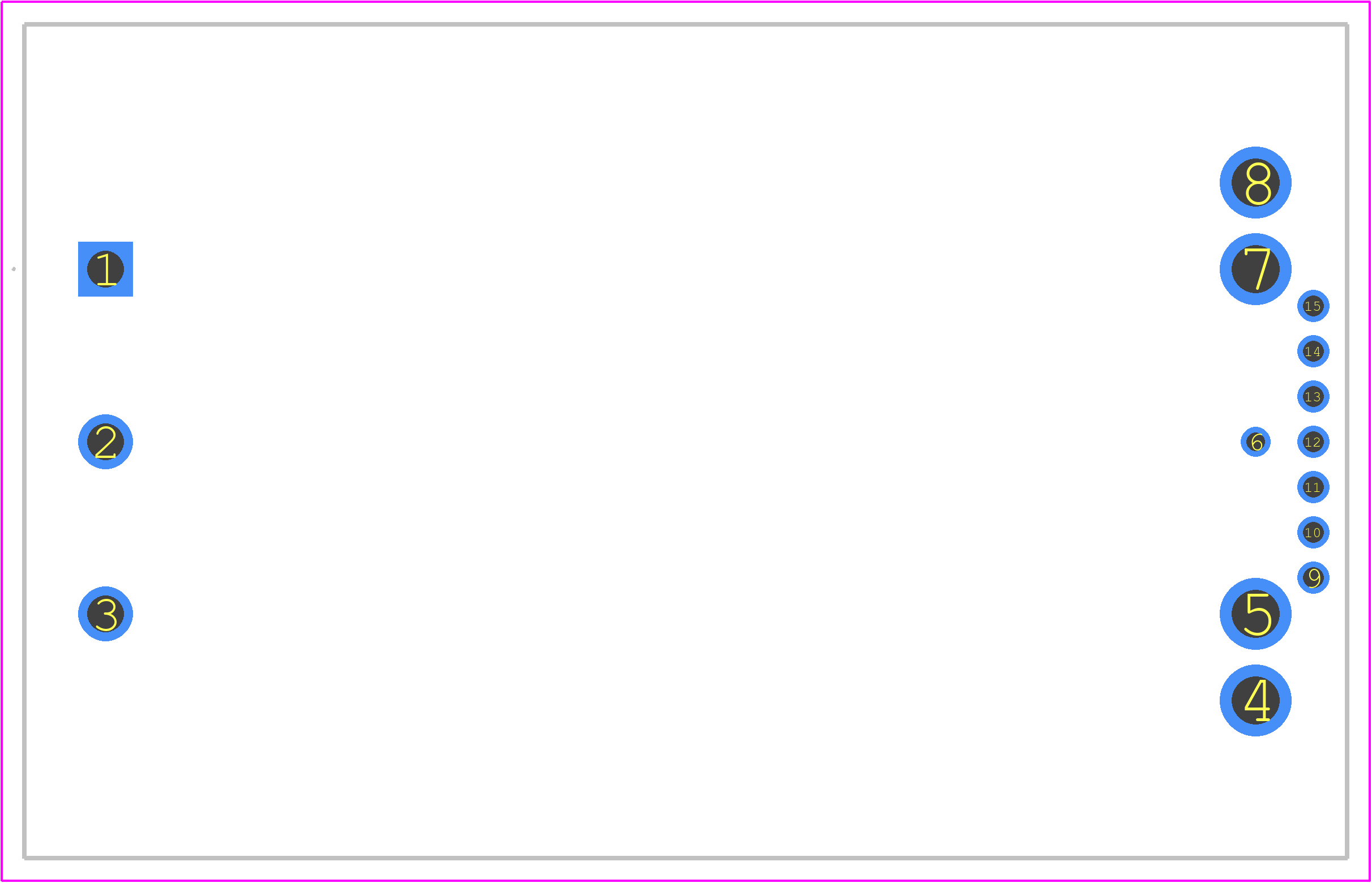

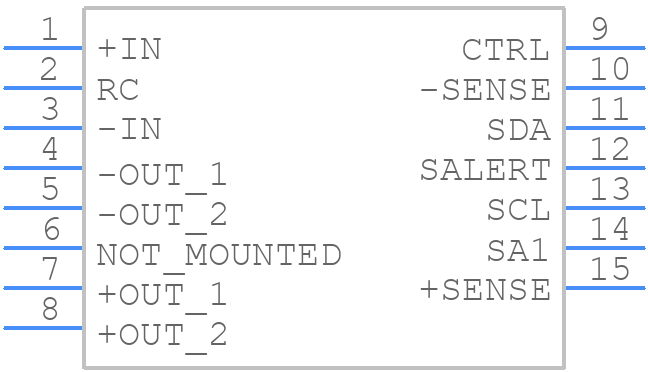

Use the download button to access the BMR4912510/871 schematic symbol, PCB footprint, and 3D model.
