OVER CURRENT; OVER VOLTAGE; OVER TEMPERATURE; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.03535 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
14.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
1300 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.053 s
Width:
36.8 mm
BMR4912511/858 Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal management for optimal performance can be found in the application note provided by Flex Ltd or through direct consultation with their technical support team. Generally, a 4-layer PCB with a solid ground plane and thermal vias is recommended, along with a heat sink and thermal interface material to ensure efficient heat dissipation.
To ensure EMC, follow the guidelines provided in the datasheet and application note for proper PCB layout, grounding, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding cans to minimize electromagnetic interference. It's also recommended to perform EMC testing and certification for your final product.
The maximum operating temperature range for the BMR4912511/858 is typically specified as -40°C to 85°C. Operating the module outside this range can affect its performance, reliability, and lifespan. High temperatures can reduce the module's efficiency, increase power consumption, and accelerate degradation, while low temperatures can affect its startup behavior and stability.
To troubleshoot common issues, refer to the troubleshooting guide provided in the datasheet or application note. Common causes of output voltage instability include incorrect input voltage, inadequate decoupling, or improper PCB layout. Overheating can be caused by inadequate thermal management, high ambient temperatures, or excessive output current. Consult the datasheet and application note for specific guidance on troubleshooting and debugging.
The recommended input and output capacitors for the BMR4912511/858 are typically specified in the datasheet or application note. The input capacitor helps to filter the input voltage and reduce ripple, while the output capacitor helps to filter the output voltage and reduce noise. The choice of capacitor values and types can affect the module's performance, stability, and EMI characteristics. Consult the datasheet and application note for specific guidance on capacitor selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BMR4912511/858 Overview

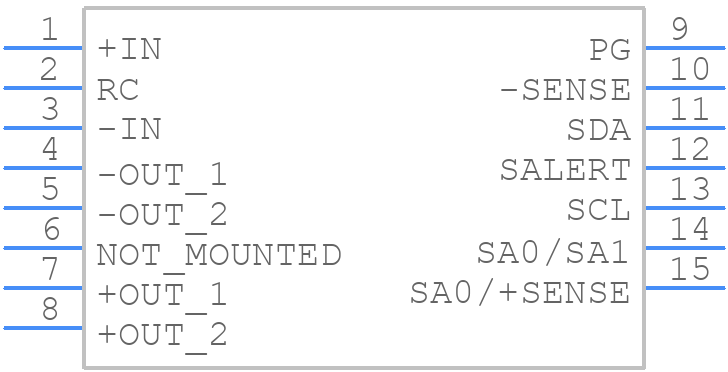

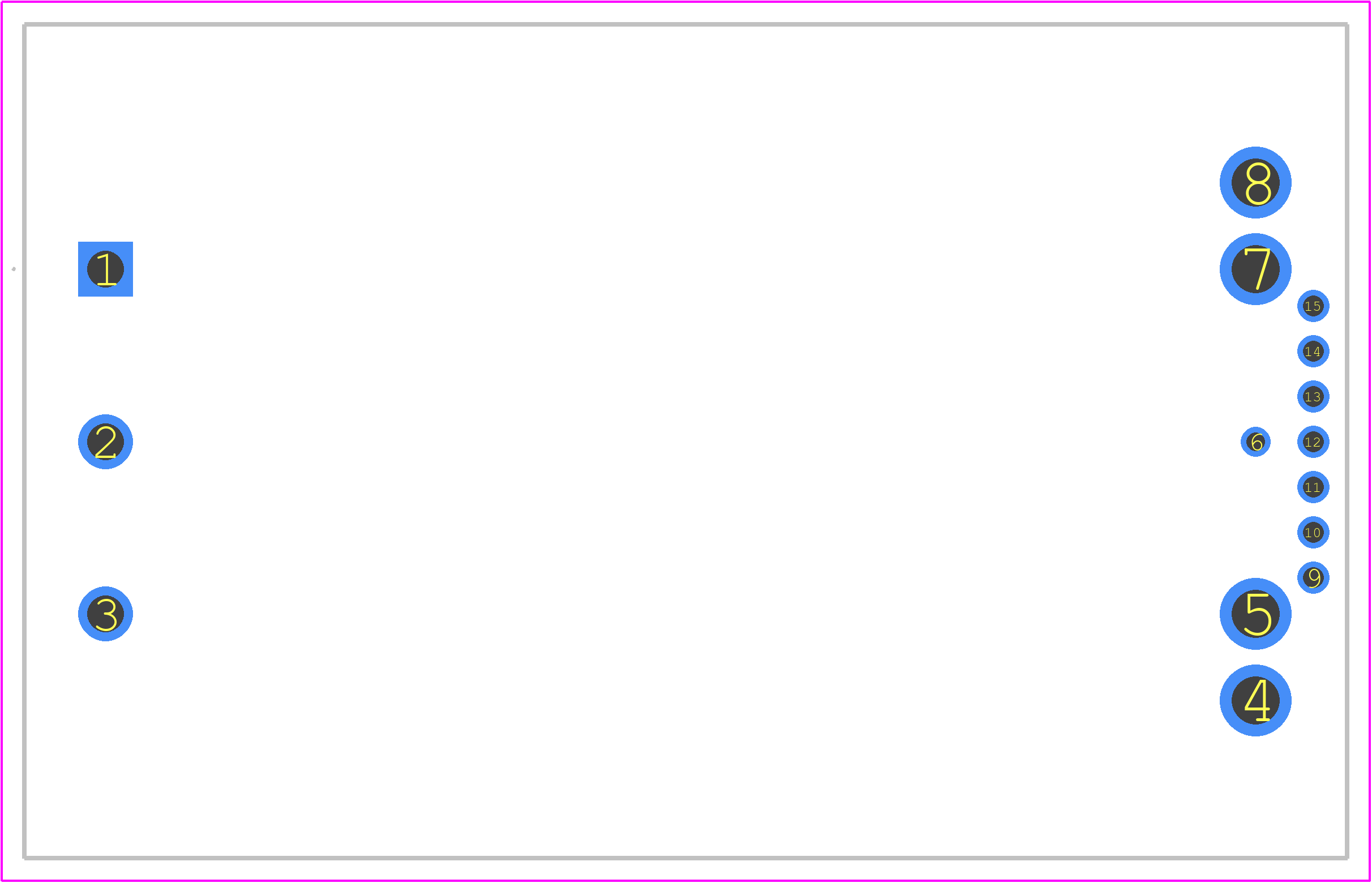

Use the download button to access the BMR4912511/858 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BMR49,
or try a keyword search, such as Power Supply Modules
