Part Image

BNO085 - CEVA

Description: Board Mount Motion & Position Sensors 9-axis IMU

Download BNO085 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

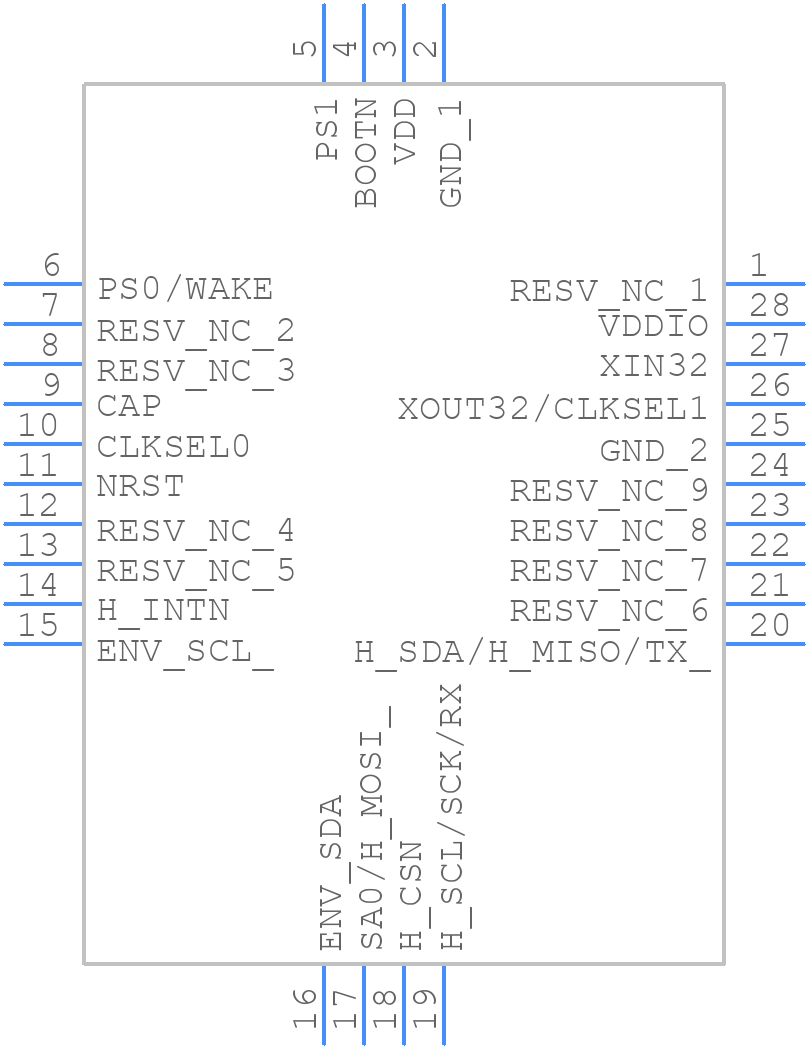

BNO085 - CEVA - PCB symbol
click to zoom
PCB Footprints
BNO085 - CEVA PCB footprint - Other - Other - BNO085-3
click to zoom
3D Models
BNO085 - CEVA - 3D model - Other - BNO085-3
click to zoom

BNO085 Details

  • Manufacturer Part Number:

    BNO085

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    LGA-28

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    CEVA Technologies Inc

  • Additional Feature:

    IT ALSO REQUIRES 2.4V TO 3.6V FOR SENSORS

  • JESD-30 Code:

    R-XBGA-N28

  • Length:

    5.2 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFLGA

  • Package Equivalence Code:

    LGA28,4X10,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.18 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.8 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

BNO085 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first power up the VDDIO pin, followed by the VDDCORE pin. This ensures that the internal voltage regulators are properly initialized.
  • The BNO085 can be configured using the SPI or I2C interface. The device requires a 3.3V power supply and a 10-20 kHz clock signal. The microcontroller should be configured to use the correct communication protocol and clock frequency.
  • The BNO085 has a maximum acceleration range of ±16g, making it suitable for a wide range of applications, including robotics, drones, and industrial automation.
  • Yes, the BNO085 is rated for operation in temperatures ranging from -40°C to 85°C, making it suitable for use in a variety of industrial and automotive applications.
  • The BNO085 provides highly accurate orientation data, with a typical accuracy of ±1-2° for roll, pitch, and yaw. This makes it suitable for applications requiring precise orientation tracking, such as robotics and augmented reality.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNO085 Overview

Use the download button to access the BNO085 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNO08, or try a keyword search, such as Other Sensors/Transducers
