BNP002-03 - Murata Electronics

Description: EMI Filter Pi-Circuit 10A 50VDC PC Pins Thru-Hole

Download BNP002-03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

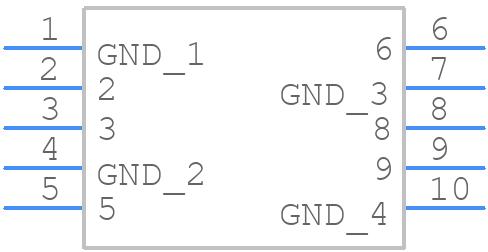

BNP002-03 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

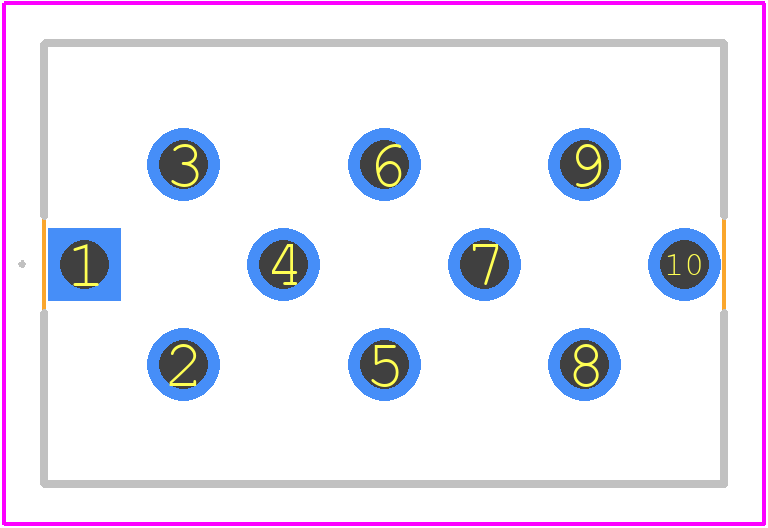

BNP002-03 - Murata Electronics PCB footprint - Other - Other - BNP002-03-4
click to zoom
3D Models
BNP002-03 - Murata Electronics - 3D model - Other - BNP002-03-4
click to zoom

BNP002-03 Details

  • Manufacturer Part Number:

    BNP002-03

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    PI-TYPE CIRCUIT

  • DC Resistance-Max:

    0.05 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    12 mm

  • Insertion Loss-Max:

    40 dB

  • Insulation Resistance-Min:

    1000 MΩ

  • Length:

    17 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    3

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Current:

    10 A

  • Rated Voltage:

    50 V

  • Width:

    11 mm

BNP002-03 Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical PCB layout with a solid ground plane, and a 50-ohm microstrip line for the RF signal. A 4-layer PCB with a dedicated ground plane is recommended for optimal performance.
  • Use a reflow soldering process with a peak temperature of 240°C. Ensure the PCB is clean and free of oxidation. Apply a small amount of solder paste to the pads, and use a soldering iron with a temperature-controlled tip to avoid overheating.
  • The BNP002-03 can handle up to 20 dBm (100 mW) of input power. Exceeding this limit may cause damage to the component or affect its performance.
  • Use a signal generator and a spectrum analyzer to test the component. Check for proper soldering, PCB layout, and component orientation. Verify the input power level and frequency range. Consult the datasheet and application notes for troubleshooting guidelines.
  • The BNP002-03 is rated for operation up to 85°C. However, high temperatures can affect its performance and reliability. Consult Murata's application notes for guidance on using the component in high-temperature environments.
