BNX003-11 - Murata Electronics

Description: MURATA - BNX003-11 - POWER LINE FILTER, EMI, 10A, 150V, TH

Download BNX003-11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

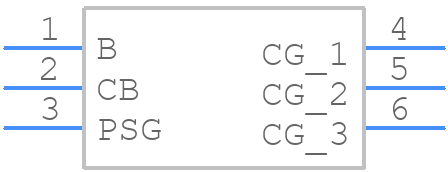

BNX003-11 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

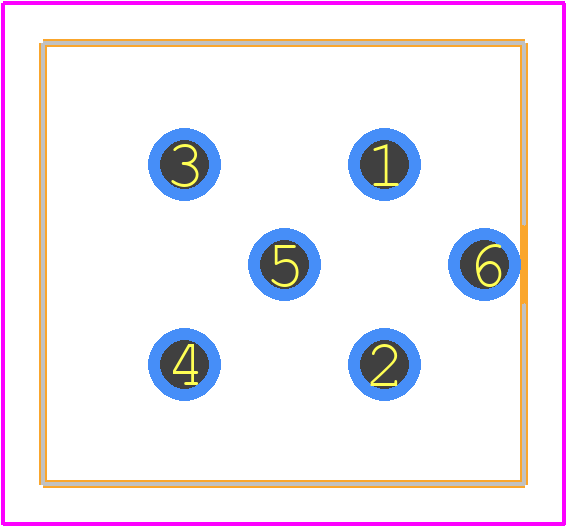

BNX003-11 - Murata Electronics PCB footprint - Other - Other - BNX003-11-2
click to zoom
3D Models
BNX003-11 - Murata Electronics - 3D model - Other - BNX003-11-2
click to zoom

BNX003-11 Details

  • Manufacturer Part Number:

    BNX003-11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    1

  • Filter Type:

    DATA LINE FILTER

  • Height:

    12.5 mm

  • Insertion Loss-Max:

    40 dB

  • Insulation Resistance-Min:

    100 MΩ

  • Length:

    12 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    BOX

  • Rated Current:

    10 A

  • Rated Voltage:

    150 V

  • Width:

    11 mm

BNX003-11 Frequently Asked Questions (FAQs)

  • Murata recommends a specific PCB layout and land pattern to ensure optimal performance and minimize signal degradation. It's essential to follow the recommended layout to achieve the best results.
  • The BNX003-11 is designed to minimize high-frequency noise and EMI. It features a shielded case and internal filtering to reduce electromagnetic interference. However, additional external shielding or filtering may be necessary depending on the specific application.
  • The BNX003-11 is rated for operation from -40°C to +85°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
  • The BNX003-11 is designed to withstand moderate vibration and shock. However, it's crucial to consult the datasheet and application notes for specific guidance on using the device in high-vibration or high-shock environments.
  • Murata recommends storing the BNX003-11 in a dry, cool place, away from direct sunlight and moisture. It's essential to handle the device by the edges to prevent damage to the pins or internal components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX003-11 Overview

Use the download button to access the BNX003-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX00, or try a keyword search, such as Data Line Filters
