Part Image

BNX012-01 - Murata Electronics

Description: BNX012 Series EMI Suppression Filter 1MHz to 1GHz 40dB min. 15A 50V

Download BNX012-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

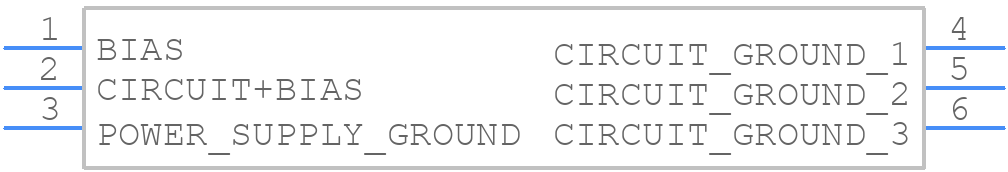

Symbol
BNX012-01 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
BNX012-01 - Murata Electronics PCB footprint - Other - Other - BNX01x L=12.0 W=11.0 T=8.0
click to zoom
3D Models
BNX012-01 - Murata Electronics - 3D model - Other - BNX01x L=12.0 W=11.0 T=8.0
click to zoom

BNX012-01 Details

  • Manufacturer Part Number:

    BNX012-01

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Filter Type:

    DATA LINE FILTER

  • Height:

    8 mm

  • Insertion Loss-Max:

    40 dB

  • Insulation Resistance-Min:

    500 MΩ

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    BOX

  • Rated Current:

    15 A

  • Rated Voltage:

    50 V

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Width:

    11 mm

BNX012-01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BNX012-01 is -40°C to +85°C.
  • To configure the BNX012-01 for BLE mode, set the module to 'Command Mode' by pulling the 'CMD' pin high, then send the 'AT+BleMode' command followed by the desired BLE mode (e.g., 'AT+BleMode=1' for BLE peripheral mode).
  • The maximum transmission power of the BNX012-01 is +8 dBm.
  • While it's technically possible to use a non-Murata antenna with the BNX012-01, Murata recommends using their certified antennas to ensure optimal performance and compliance with regulatory requirements.
  • Firmware updates for the BNX012-01 can be performed using the Murata-provided 'BNX012-01 Firmware Update Tool' software, which is available on the Murata website.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX012-01 Overview

Use the download button to access the BNX012-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX01, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
