Part Image

BNX022-01L - Murata Electronics

Description: Combined block inline filter,100Vdc,15A Murata BNX02 Series Wire-wound SMD Inductor 10A Idc

Download BNX022-01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

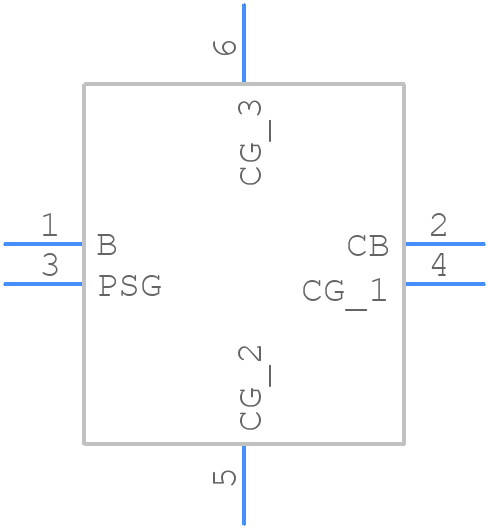

Symbol
BNX022-01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
BNX022-01L - Murata Electronics PCB footprint - Other - Other - BNX02x L=12.1 W=9.1 T=3.1
click to zoom
3D Models
BNX022-01L - Murata Electronics - 3D model - Other - BNX02x L=12.1 W=9.1 T=3.1
click to zoom

BNX022-01L Details

  • Manufacturer Part Number:

    BNX022-01L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Attenuation Frequency-Max:

    1000 MHz

  • Attenuation@Freq-Max:

    35 dB

  • Capacitance:

    1000000 µF

  • DC Resistance-Max:

    0.00043 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.1 mm

  • Insulation Resistance-Min:

    500 MΩ

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    10 A

  • Rated Voltage:

    50 V

  • Width:

    9.1 mm

BNX022-01L Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical PCB layout with a solid ground plane and a 50-ohm transmission line to minimize signal reflections and ensure optimal performance.
  • Murata recommends attaching a heat sink to the device and ensuring good airflow around the component to maintain a junction temperature below 125°C.
  • While the datasheet specifies an operating frequency range of 100 kHz to 1 GHz, Murata recommends consulting with their application engineers for specific frequency requirements above 500 MHz.
  • Yes, BNX022-01L is suitable for high-reliability and aerospace applications, but Murata recommends consulting with their sales team to discuss specific requirements and obtain necessary certifications.
  • Murata recommends following a systematic troubleshooting approach, checking for proper PCB layout, component orientation, and soldering quality, and consulting with their application engineers if issues persist.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX022-01L Overview

Use the download button to access the BNX022-01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
