BNX023-01B - Murata Electronics

Description: BNX023 Series EMI Suppression Filter 1MHz to 1GHz 35dB min. 20A 100V

Download BNX023-01B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

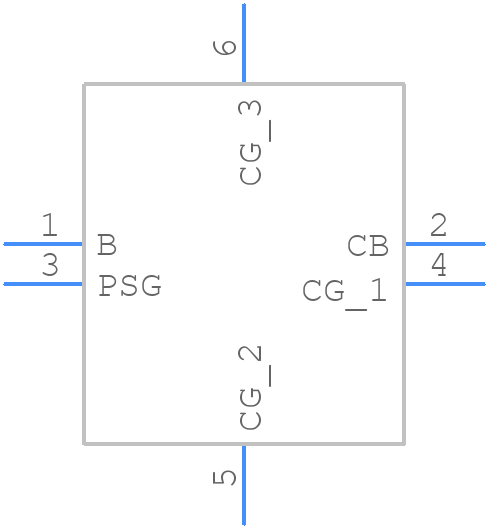

Symbol
BNX023-01B - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
BNX023-01B - Murata Electronics PCB footprint - Other - Other - BNX02x L=12.1 W=9.1 T=3.1
click to zoom
3D Models
BNX023-01B - Murata Electronics - 3D model - Other - BNX02x L=12.1 W=9.1 T=3.1
click to zoom

BNX023-01B Details

  • Manufacturer Part Number:

    BNX023-01B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Attenuation Frequency-Max:

    1000 MHz

  • Attenuation@Freq-Max:

    35 dB

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.1 mm

  • Insertion Loss-Max:

    35 dB

  • Insulation Resistance-Min:

    500 MΩ

  • JESD-609 Code:

    e1

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    BULK

  • Rated Current:

    20 A

  • Rated Voltage:

    100 V

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Width:

    9.1 mm

BNX023-01B Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BNX023-01B is -40°C to +85°C.
  • To configure the BNX023-01B for BLE mode, set the module to 'Command Mode' by sending the 'AT+MODE=BLE' command, and then configure the BLE settings using the 'AT+Ble' command.
  • The maximum transmission power of the BNX023-01B is +8 dBm.
  • While it's technically possible to use a non-Murata antenna with the BNX023-01B, it's not recommended as it may affect the module's performance and certification. Murata recommends using their approved antennas for optimal performance.
  • Firmware updates for the BNX023-01B can be performed using the Murata-provided firmware update tool and a serial connection to the module. Refer to the Murata documentation for detailed instructions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX023-01B Overview

Use the download button to access the BNX023-01B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
