BNX023-01L - Murata Electronics

Description: Murata BNX02 Series 15A 100 V dc 1 MHz → 1 GHz SMD EMI Filter, with Flat Contact Terminals

Download BNX023-01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

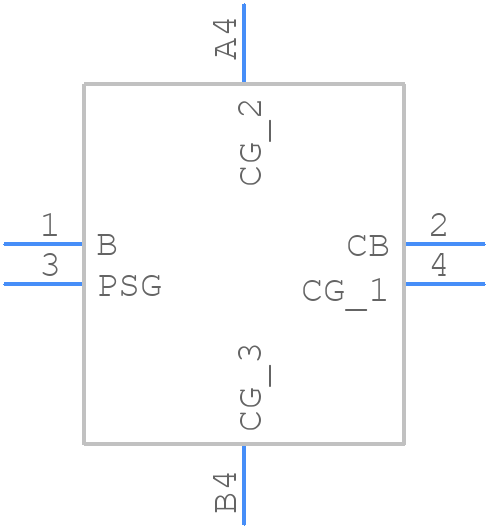

BNX023-01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

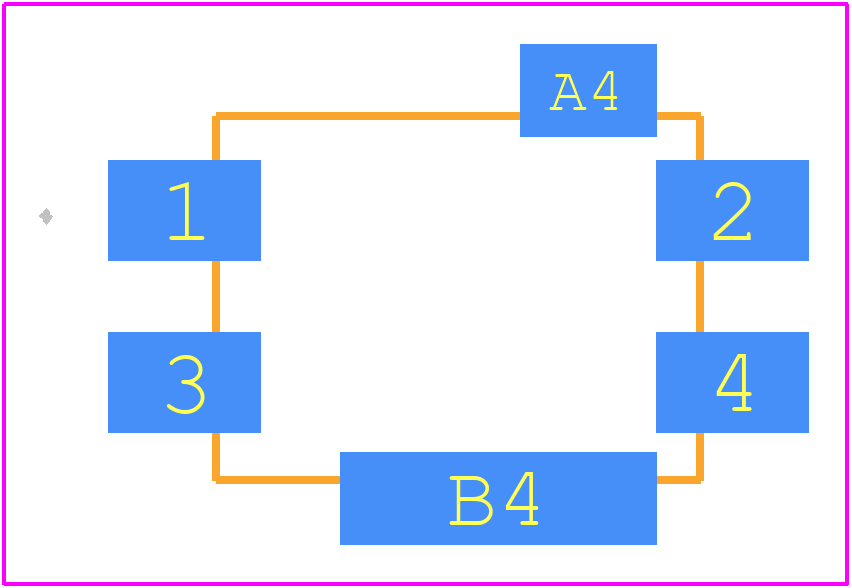

BNX023-01L - Murata Electronics PCB footprint - Other - Other - BNX023-01L-2
click to zoom
3D Models
BNX023-01L - Murata Electronics - 3D model - Other - BNX023-01L-2
click to zoom

BNX023-01L Details

  • Manufacturer Part Number:

    BNX023-01L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    8

  • Attenuation Frequency-Max:

    1000 MHz

  • Attenuation@Freq-Max:

    35 dB

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.1 mm

  • Insertion Loss-Max:

    35 dB

  • Insulation Resistance-Min:

    500 MΩ

  • JESD-609 Code:

    e1

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current:

    20 A

  • Rated Voltage:

    100 V

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Width:

    9.1 mm

BNX023-01L Frequently Asked Questions (FAQs)

  • The recommended storage condition for BNX023-01L is in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 80%.
  • Yes, BNX023-01L is designed to withstand vibrations up to 10G (10-2000Hz) and can be used in high-vibration environments, but it's recommended to consult with Murata's application engineers for specific use cases.
  • Yes, BNX023-01L is compatible with lead-free soldering, but it's recommended to follow the recommended soldering profile and temperature range to ensure reliable assembly.
  • The maximum operating temperature range for BNX023-01L is -40°C to 85°C, but it's recommended to consult the datasheet for specific temperature ratings for different operating conditions.
  • Yes, BNX023-01L is designed to operate in humid environments, but it's recommended to follow the recommended storage and operating conditions to prevent moisture-related issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX023-01L Overview

Use the download button to access the BNX023-01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
