Part Image

BNX024H01K - Murata Electronics

Description: BNX024 Series EMI Suppression Filter 100kHz to 1GHz 35dB min. 20A 50V

Download BNX024H01K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

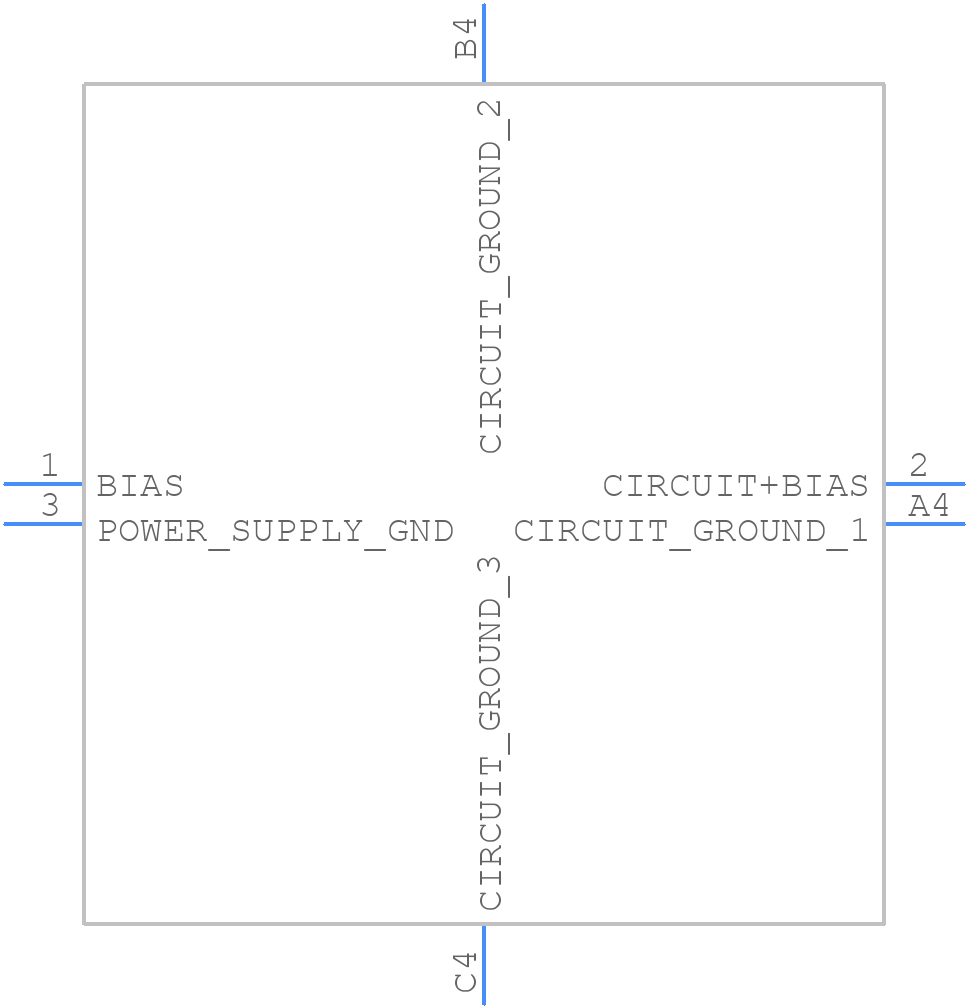

BNX024H01K - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

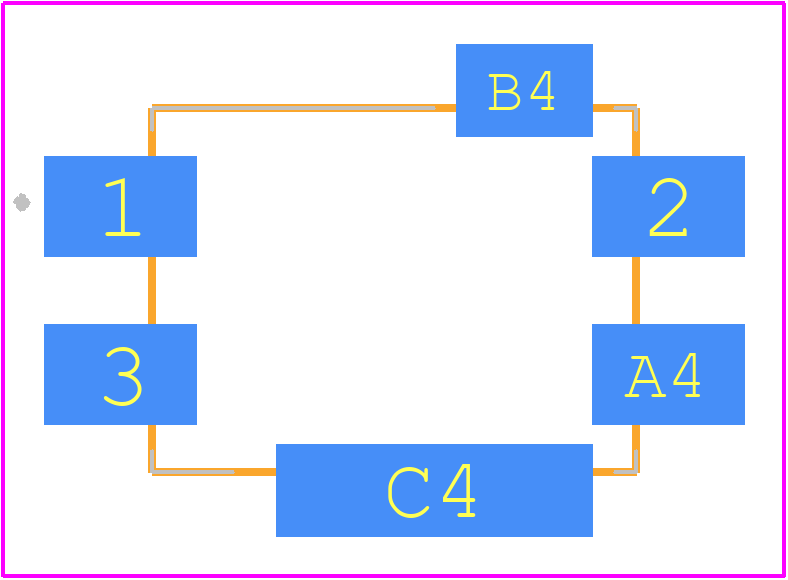

BNX024H01K - Murata Electronics PCB footprint - Other - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom
3D Models
BNX024H01K - Murata Electronics - 3D model - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom

BNX024H01K Details

  • Manufacturer Part Number:

    BNX024H01K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.5 mm

  • Insulation Resistance-Min:

    100 MΩ

  • JESD-609 Code:

    e1

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    20 A

  • Rated Voltage:

    50 V

  • Screening Level:

    AEC-Q200

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Width:

    9.1 mm

BNX024H01K Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and reduce electromagnetic interference (EMI).
  • The BNX024H01K has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate thermal management and heat dissipation. This can be achieved through proper PCB design, thermal vias, and heat sinks. Murata also provides thermal design guidelines in their application notes.
  • Murata provides recommended soldering conditions and reflow profiles in their datasheet and application notes. It's essential to follow these guidelines to ensure reliable solder joints and prevent damage to the component.
  • Murata provides troubleshooting guides and application notes that can help identify and resolve common issues. Additionally, engineers can use signal integrity analysis tools and simulation software to debug and optimize their designs.
  • Yes, the BNX024H01K requires proper EMI shielding and grounding to ensure reliable operation and minimize electromagnetic interference. Murata provides guidelines for EMI shielding and grounding in their application notes and design guides.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX024H01K Overview

Use the download button to access the BNX024H01K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
