BNX024H01L - Murata Electronics

Description: Murata BNX02 Series 15A 50 V dc 100 kHz → 1 GHz SMD EMI Filter, with Flat Contact Terminals

Download BNX024H01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

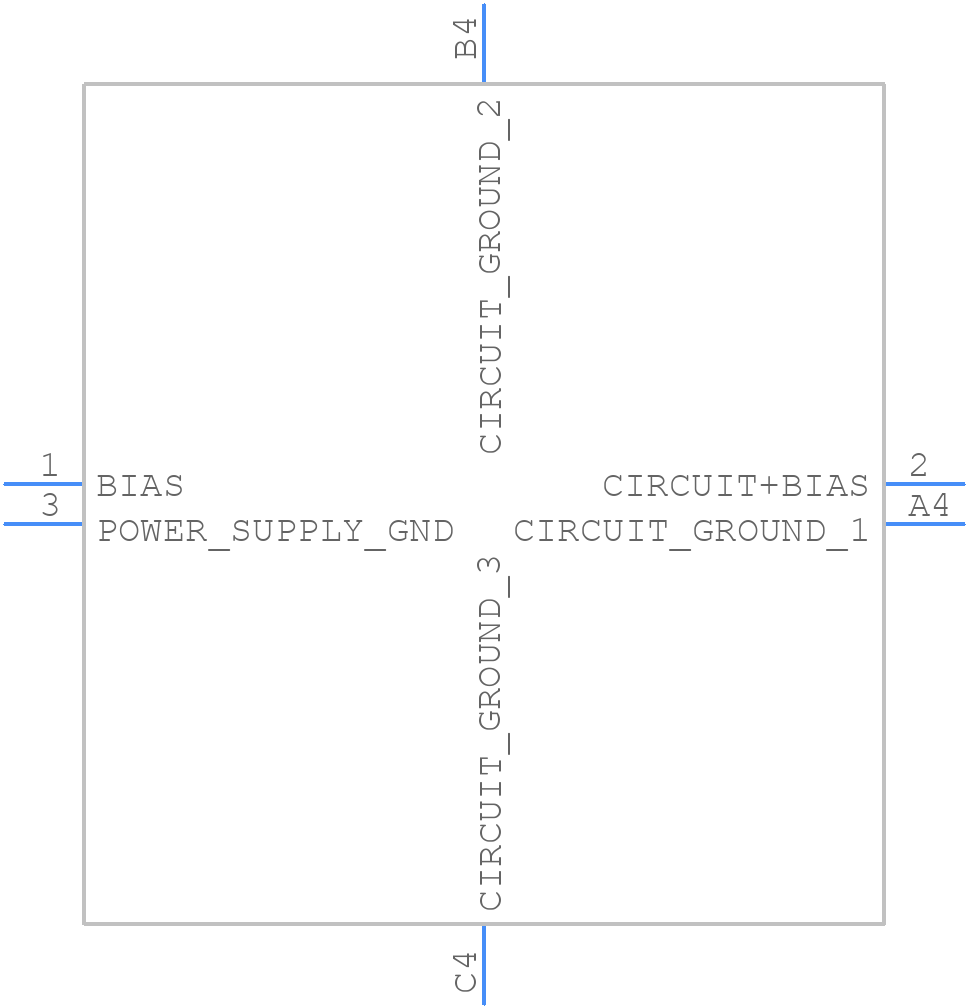

BNX024H01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

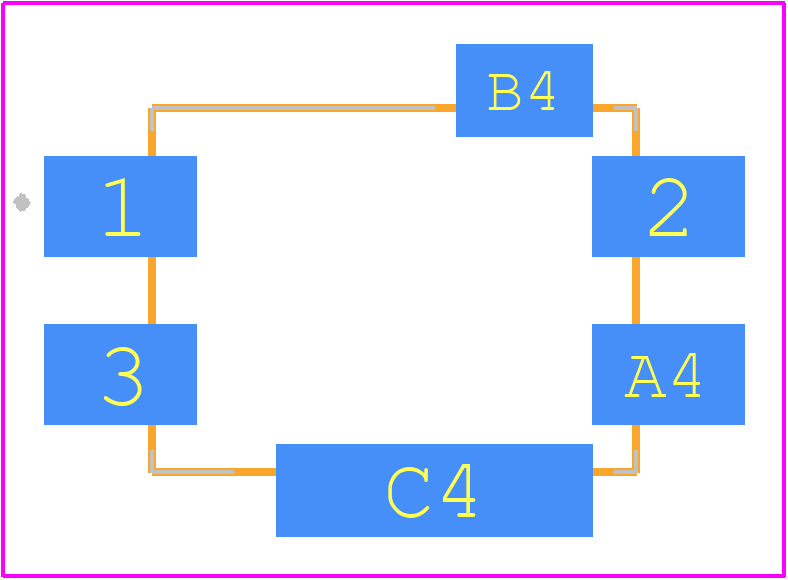

BNX024H01L - Murata Electronics PCB footprint - Other - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom
3D Models
BNX024H01L - Murata Electronics - 3D model - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom

BNX024H01L Details

  • Manufacturer Part Number:

    BNX024H01L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.5 mm

  • Insulation Resistance-Min:

    100 MΩ

  • JESD-609 Code:

    e2

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    20 A

  • Rated Voltage:

    50 V

  • Screening Level:

    AEC-Q200

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Width:

    9.1 mm

BNX024H01L Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical PCB layout with a solid ground plane and a 50-ohm microstrip line for optimal performance. A reference design is available in the application note.
  • The BNX024H01L has a thermal pad on the bottom side, which should be connected to a thermal ground plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer. Ensure good airflow around the component and avoid blocking the airflow.
  • Murata recommends a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 30-60 seconds. Avoid using wave soldering or hand soldering, as it may damage the component.
  • Use a signal generator and a spectrum analyzer to verify the input and output signals. Check the PCB layout and soldering quality. Consult the application note and datasheet for troubleshooting guidelines.
  • The BNX024H01L operates from -40°C to +85°C (-40°F to +185°F). However, the optimal operating temperature range is from 0°C to +70°C (32°F to +158°F) for best performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX024H01L Overview

Use the download button to access the BNX024H01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
