BNX026H01L - Murata Electronics

Description: Murata BNX02 Series, EMI Filter, 50 V dc 1GHz, 15A SMD, Solder Termination, 12.1 x 9.1 x 3.5mm

Download BNX026H01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

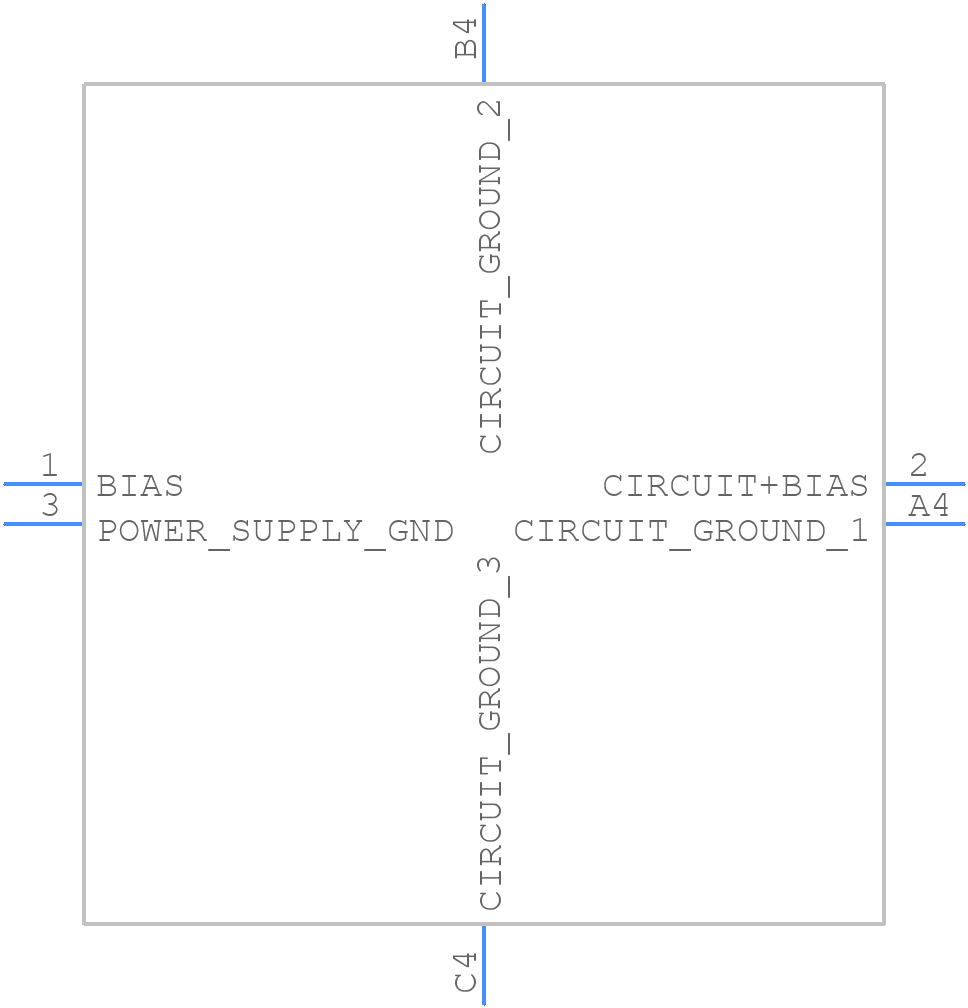

BNX026H01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

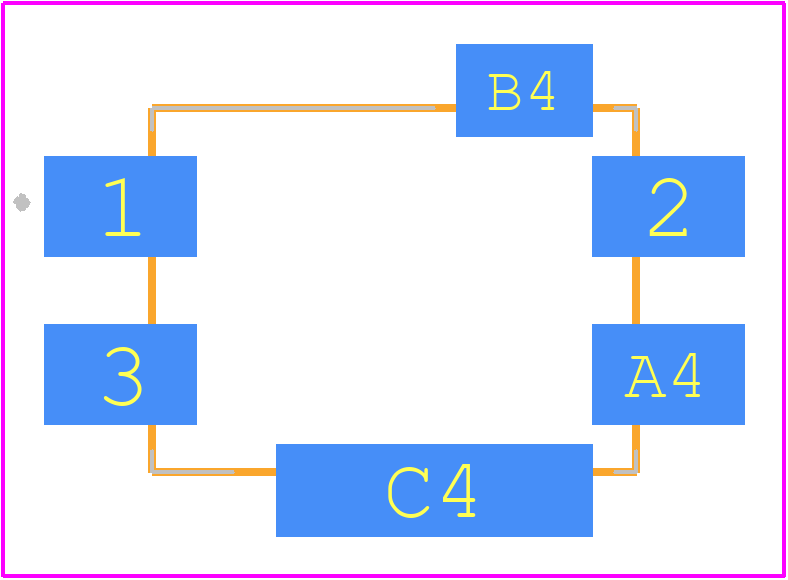

BNX026H01L - Murata Electronics PCB footprint - Other - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom
3D Models
BNX026H01L - Murata Electronics - 3D model - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom

BNX026H01L Details

  • Manufacturer Part Number:

    BNX026H01L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    8

  • Additional Feature:

    AEC-Q200

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.5 mm

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current:

    20 A

  • Rated Voltage:

    50 V

  • Screening Level:

    AEC-Q200

  • Width:

    9.1 mm

BNX026H01L Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical PCB layout with a solid ground plane and a 50-ohm microstrip line for optimal performance. A reference design is available in the application note.
  • The BNX026H01L has a thermal pad on the bottom side, which should be connected to a thermal relief pattern on the PCB. A thermal interface material (TIM) can be used to improve heat transfer.
  • Murata recommends a reflow soldering process with a peak temperature of 260°C and a dwell time of 30 seconds. Hand soldering is not recommended due to the component's small size.
  • While the BNX026H01L is designed for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may affect the component's performance and reliability.
  • The BNX026H01L is designed to operate up to 6 GHz, but its performance may degrade at higher frequencies. For applications above 6 GHz, Murata recommends using a different component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX026H01L Overview

Use the download button to access the BNX026H01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters
