BNX028-01B - Murata Electronics

Description: BNX028 Series EMI Suppression Filter 30kHz to 1GHz 35dB min. 20A 16V

Download BNX028-01B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

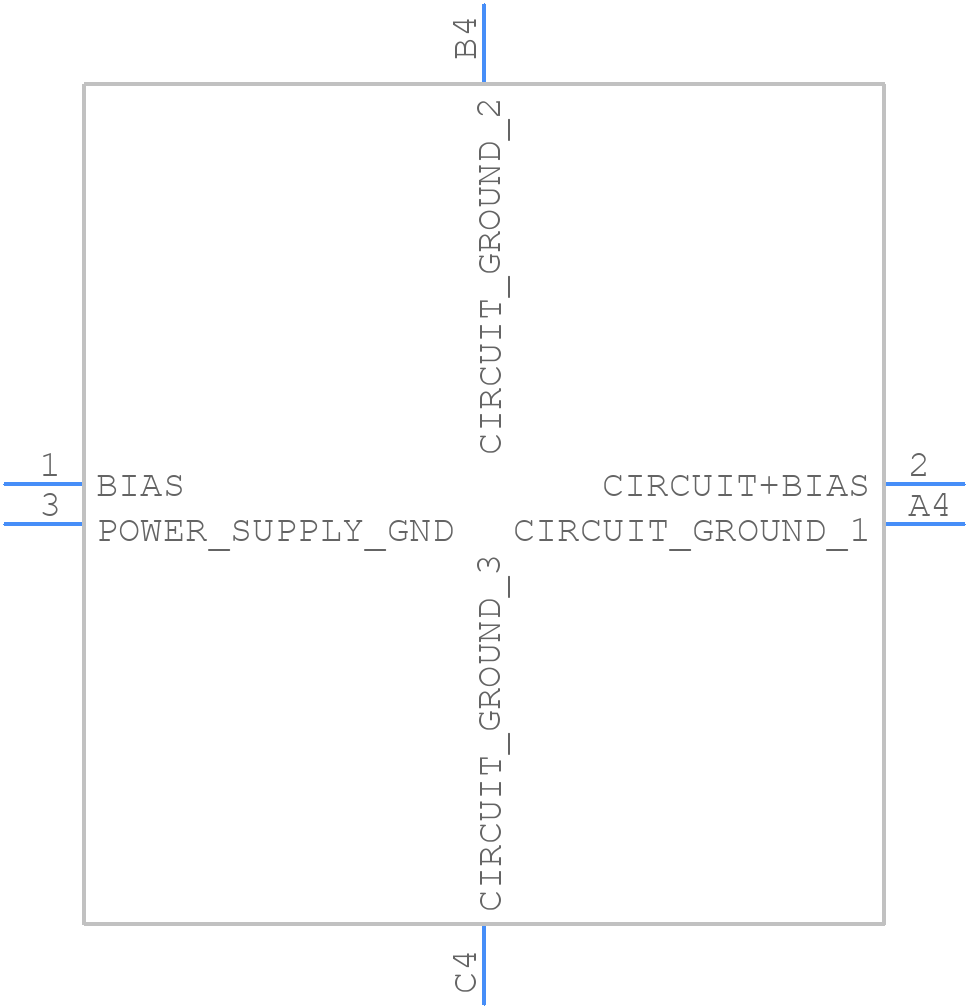

BNX028-01B - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

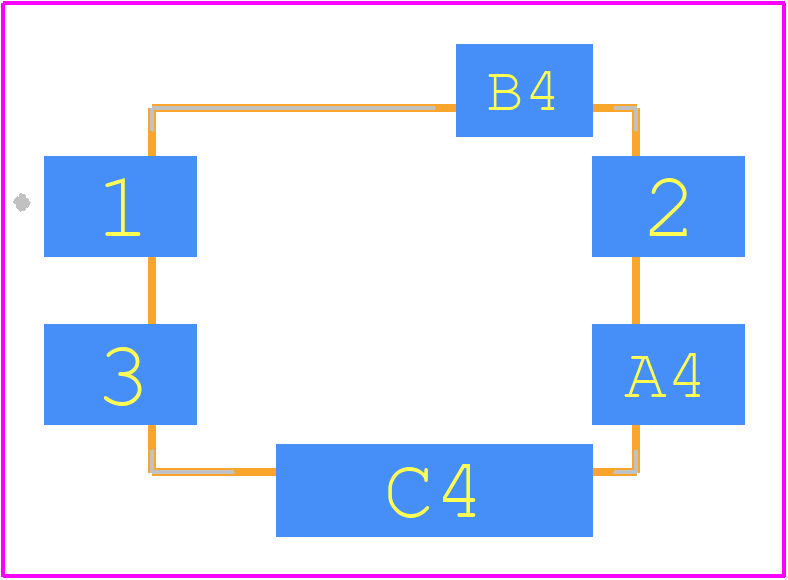

BNX028-01B - Murata Electronics PCB footprint - Other - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom
3D Models
BNX028-01B - Murata Electronics - 3D model - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom

BNX028-01B Details

  • Manufacturer Part Number:

    BNX028-01B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.5 mm

  • Insulation Resistance-Min:

    1100 MΩ

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BAG; BULK

  • Rated Current:

    20 A

  • Rated Voltage:

    16 V

  • Width:

    9.1 mm

BNX028-01B Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB layout and land pattern in their application note (DN0050) and layout guide (LG028). It's essential to follow these guidelines to ensure proper module operation and minimize electromagnetic interference.
  • The module requires a specific configuration for optimal performance. Refer to the datasheet and application note (DN0050) for guidance on setting the correct register values, clock configuration, and power management.
  • The BNX028-01B module is rated for operation between -40°C to +85°C. However, it's essential to consider the temperature derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation.
  • Murata provides a troubleshooting guide (TR028) that covers common issues and their solutions. Additionally, refer to the datasheet and application note (DN0050) for guidance on debugging and error handling.
  • The datasheet recommends a power supply voltage of 1.8V to 3.6V, and decoupling capacitors with values of 10uF and 100nF. However, the optimal values may vary depending on the specific application and PCB design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX028-01B Overview

Use the download button to access the BNX028-01B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
