BNX028-01L - Murata Electronics

Description: EMI Filter SMD for General Application Murata BNX02 Series, EMI Filter, 16 V dc 1GHz, 15A SMD, Solder Termination, 12.1 x 9.1 x 3.5mm

Download BNX028-01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

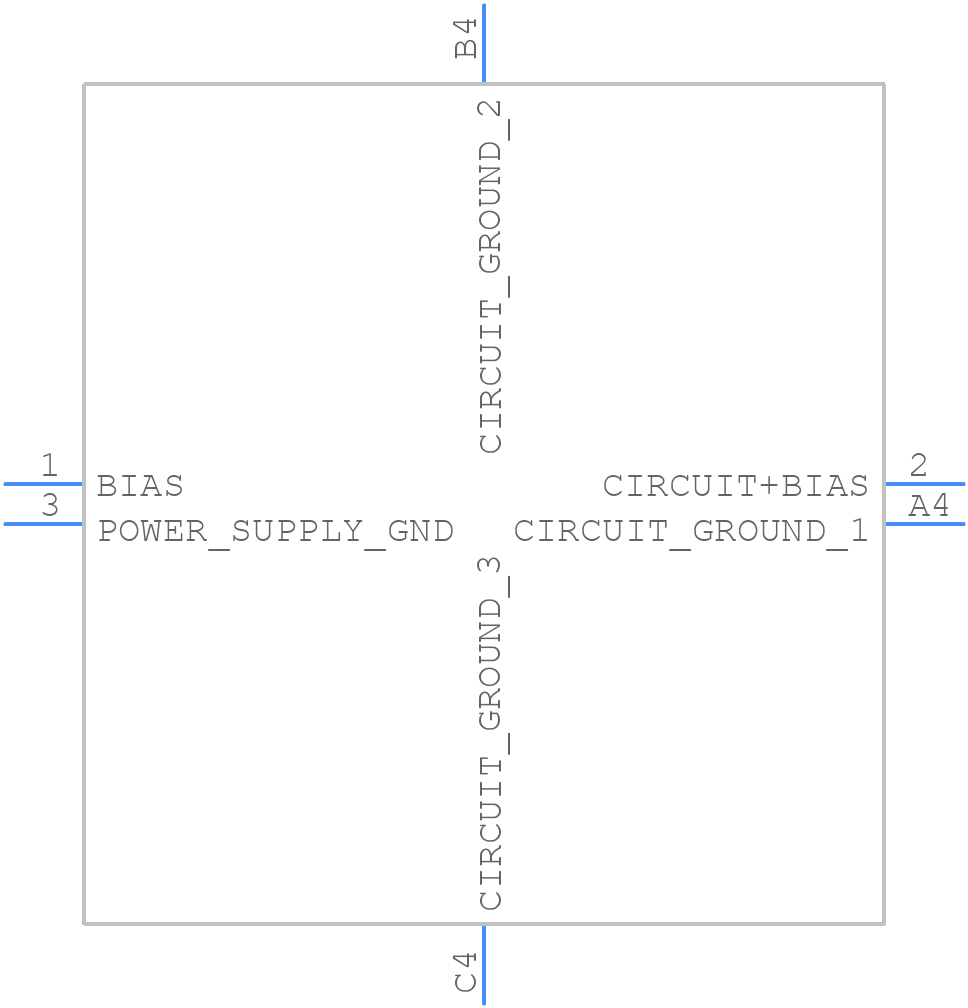

BNX028-01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

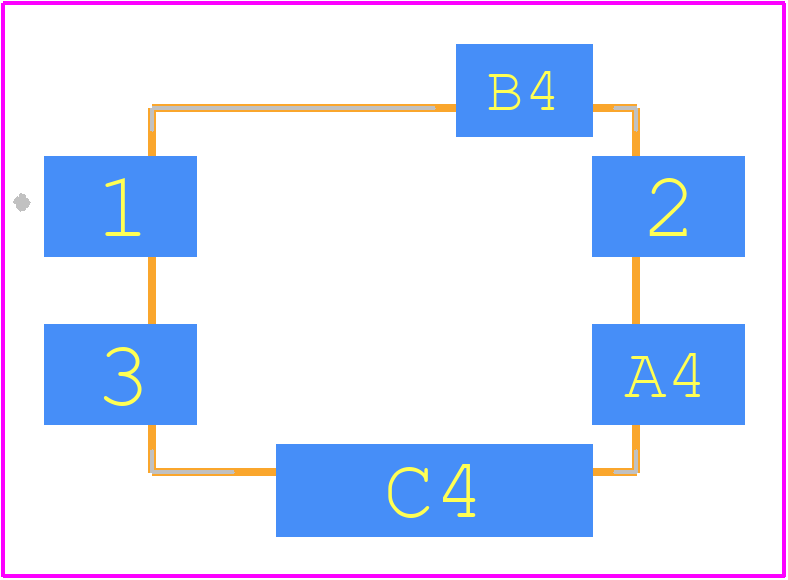

BNX028-01L - Murata Electronics PCB footprint - Other - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom
3D Models
BNX028-01L - Murata Electronics - 3D model - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom

BNX028-01L Details

  • Manufacturer Part Number:

    BNX028-01L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    8

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.5 mm

  • Insulation Resistance-Min:

    1100 MΩ

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current:

    20 A

  • Rated Voltage:

    16 V

  • Width:

    9.1 mm

BNX028-01L Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical PCB layout with a solid ground plane and a 50-ohm microstrip transmission line to minimize signal reflections and ensure optimal performance.
  • The BNX028-01L has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the component to prevent overheating.
  • Murata recommends a soldering profile with a peak temperature of 240°C, a dwell time of 30-60 seconds, and a cooling rate of 4°C/s to prevent thermal shock and ensure reliable solder joints.
  • Yes, the BNX028-01L is designed to withstand vibrations up to 10G, but it's essential to ensure the component is properly secured to the PCB and the PCB is rigid enough to prevent resonance.
  • Use a signal generator and oscilloscope to verify the input and output signals. Check for proper power supply, grounding, and decoupling. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX028-01L Overview

Use the download button to access the BNX028-01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
