BNX029-01L - Murata Electronics

Description: BNX029 Series EMI Suppression Filter 15kHz to 1GHz 35dB min. 20A 6.3V

Download BNX029-01L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

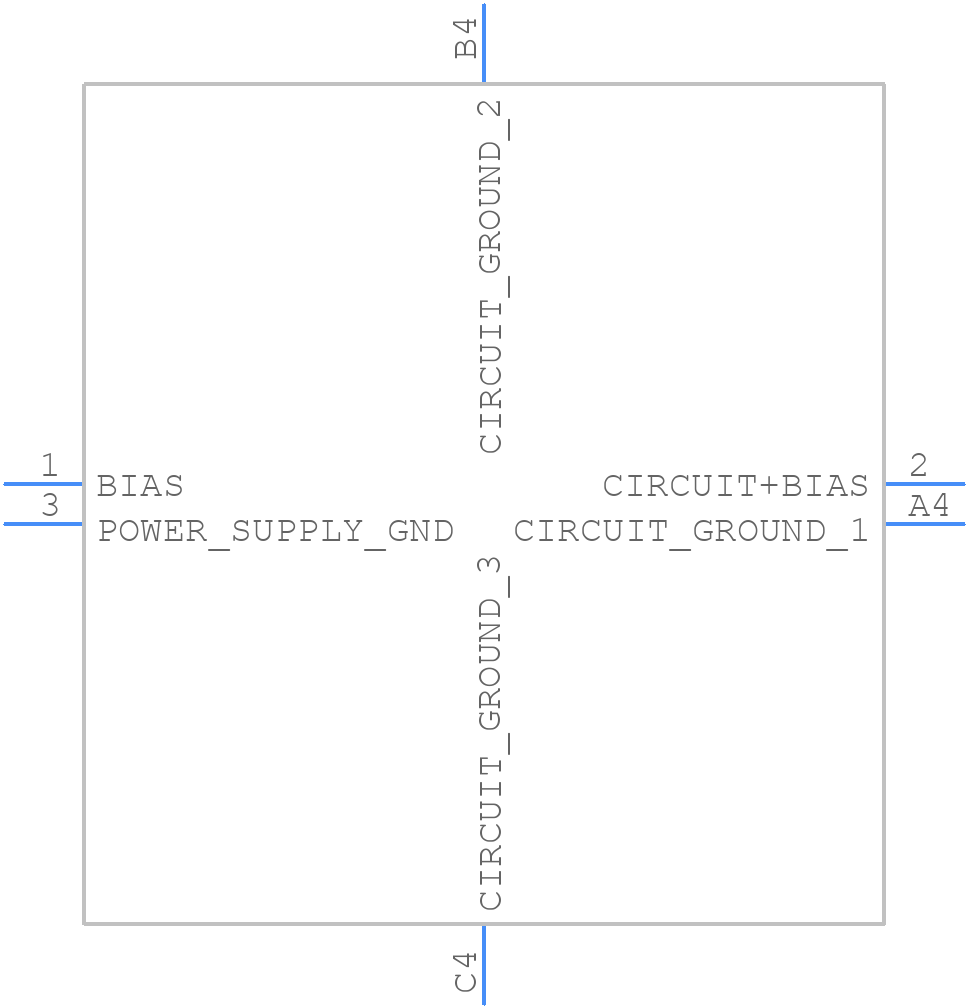

BNX029-01L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

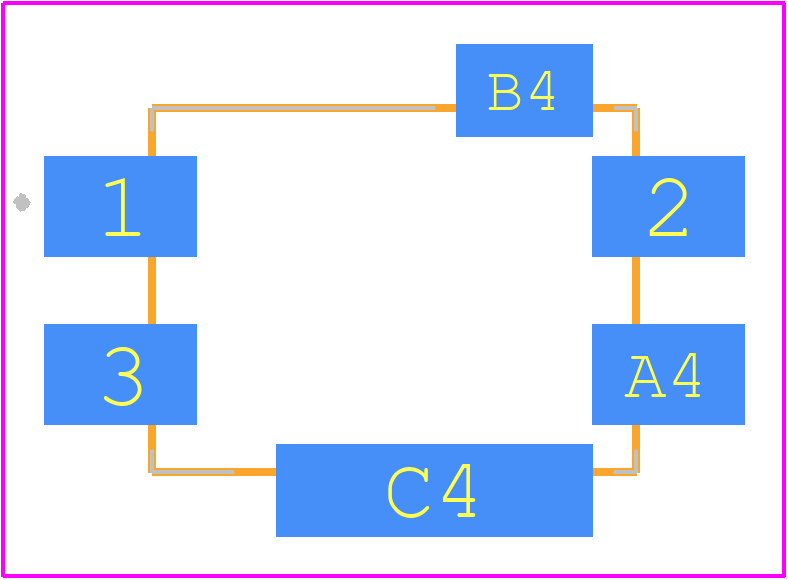

BNX029-01L - Murata Electronics PCB footprint - Other - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom
3D Models
BNX029-01L - Murata Electronics - 3D model - Other - BNX02x L=12.1 W=9.1 T=3.5
click to zoom

BNX029-01L Details

  • Manufacturer Part Number:

    BNX029-01L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    8

  • Filter Type:

    DATA LINE FILTER

  • Height:

    3.5 mm

  • Insulation Resistance-Min:

    0.5 MΩ

  • Length:

    12.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current:

    20 A

  • Rated Voltage:

    6.3 V

  • Width:

    9.1 mm

BNX029-01L Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical PCB layout with a solid ground plane, and a 50-ohm microstrip line for the RF signal. A detailed layout guide is available in the application note.
  • Murata recommends using a reflow soldering process with a peak temperature of 240°C. A soldering guide is available in the datasheet, and it's essential to follow the recommended soldering profile to prevent damage to the component.
  • The BNX029-01L is rated for operation from -40°C to +85°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and the recommended operating temperature range is -20°C to +70°C for optimal performance.
  • Yes, the BNX029-01L is designed to withstand vibrations up to 10G. However, it's essential to ensure the component is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • Murata provides a troubleshooting guide in the application note, which covers common issues and their solutions. It's essential to follow the recommended troubleshooting procedure to identify and resolve issues quickly and efficiently.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BNX029-01L Overview

Use the download button to access the BNX029-01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BNX02, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
