BP2P1+ footprint, schematic symbol and 3D model by Mini-Circuits

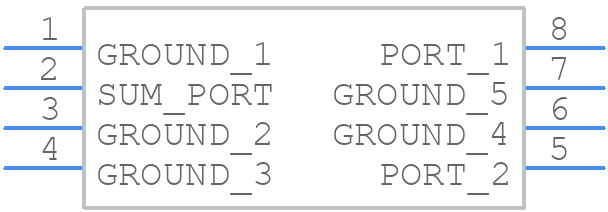

Symbol

click to zoom

PCB Footprints

BP2P1+ - Mini-Circuits PCB footprint - Other - Other - BP2P1+-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BP2P1+
Part Number BP2P1+
Manufacturer Mini-Circuits
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BP2P1+-1
Released Date Oct 13, 2023
Last Modified Date Oct 13, 2023 5:25 AM UTC
Pinout / Pin List Click Here (Member Only)

BP2P1+ Details

Manufacturer Part Number:
BP2P1+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7
Additional Feature:
TR, 7 INCH: 1000
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
31.76 dBm
Insertion Loss-Max:
1.3 dB
Isolation-Min:
10 dB
JESD-609 Code:
e2
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Frequency-Max:
2350 MHz
Operating Frequency-Min:
1400 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
SOP8,.25
RF/Microwave Device Type:
SPLITTER AND COMBINER
Surface Mount:
YES
Terminal Finish:
Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier
VSWR-Max:
1.55
