BP5221A - ROHM Semiconductor

Description: Step-down DC/DC Converters (Non-isolated) : Self-excitation type DC/DC converters consisting of switching devices,rectifier devices and inductors. Only needed external devices are electrolytic capacitors in input/output line.Compact uplight SIP-9 package requiring no heat-sink.

Download BP5221A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

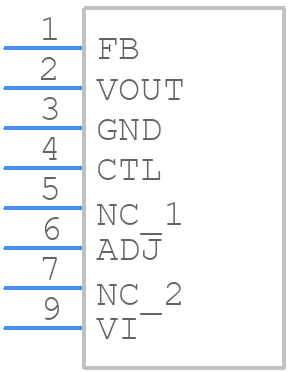

BP5221A - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BP5221A - ROHM Semiconductor PCB footprint - Other - Other - SIP9_FFW
click to zoom

BP5221A Details

  • Manufacturer Part Number:

    BP5221A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    SIP-8/9

  • Pin Count:

    8/9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-XSMA-T8

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

BP5221A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the IC, and avoid blocking the airflow with components or obstacles.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V to ensure reliable operation and prevent overheating.
  • The BP5221A is rated for operation up to 85°C, but derating is required for temperatures above 70°C. Consult the datasheet for derating curves and ensure proper thermal management.
  • Check the PCB layout, component values, and input/output connections. Verify the input voltage, output load, and decoupling capacitors. Consult the datasheet and application notes for troubleshooting guidelines.
