BPA06B - LITTELFUSE

Description: Switch DIP OFF ON SPST 6 Piano 0.1A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube

Download BPA06B Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BPA06B model

Email notifications will be applied after download.

Send part feedback

Symbol

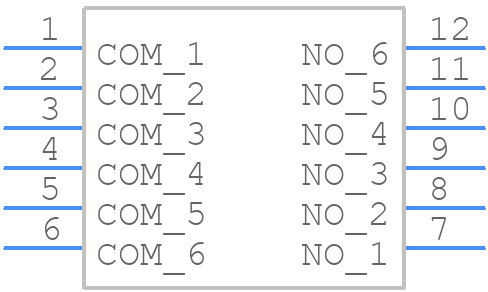

BPA06B - LITTELFUSE - PCB symbol

PCB Footprints

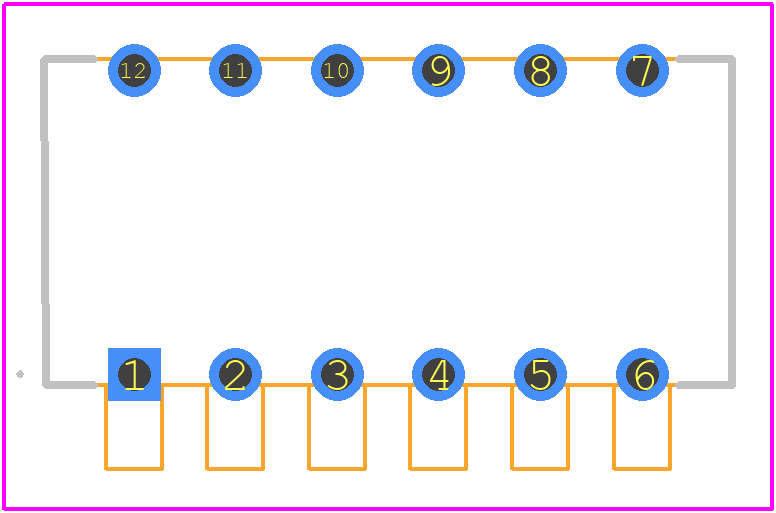

BPA06B - LITTELFUSE PCB footprint - Other - Other - BPA06B-1

3D Models

BPA06B - LITTELFUSE - 3D model - Other - BPA06B-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for BPA06B
Part Number BPA06B
Manufacturer LITTELFUSE
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - BPA06B-1
Released Date Dec 15, 2022
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

BPA06B Details

Manufacturer Part Number:
BPA06B
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Littelfuse Inc
Switch Type:
SLIDE DIP SWITCH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

BPA06B Overview

Use the download button to access the BPA06B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BPA06, or try a keyword search, such as DIP Switches
