BPA10SBR - LITTELFUSE

Description: 10 Way Surface Mount DIP Switch SPST, Raised, Slide Actuator

Download BPA10SBR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BPA10SBR model

Email notifications will be applied after download.

Send part feedback

Symbol

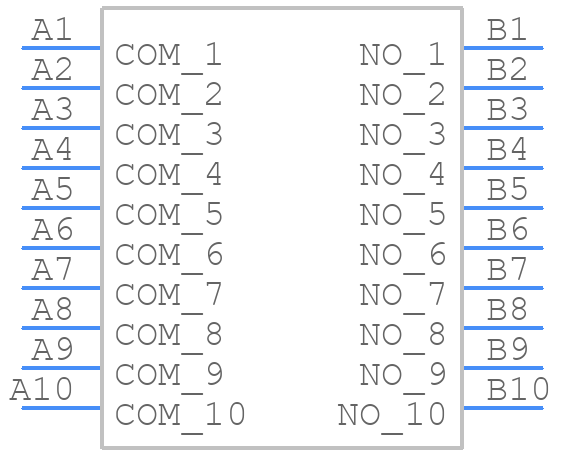

BPA10SBR - LITTELFUSE - PCB symbol

PCB Footprints

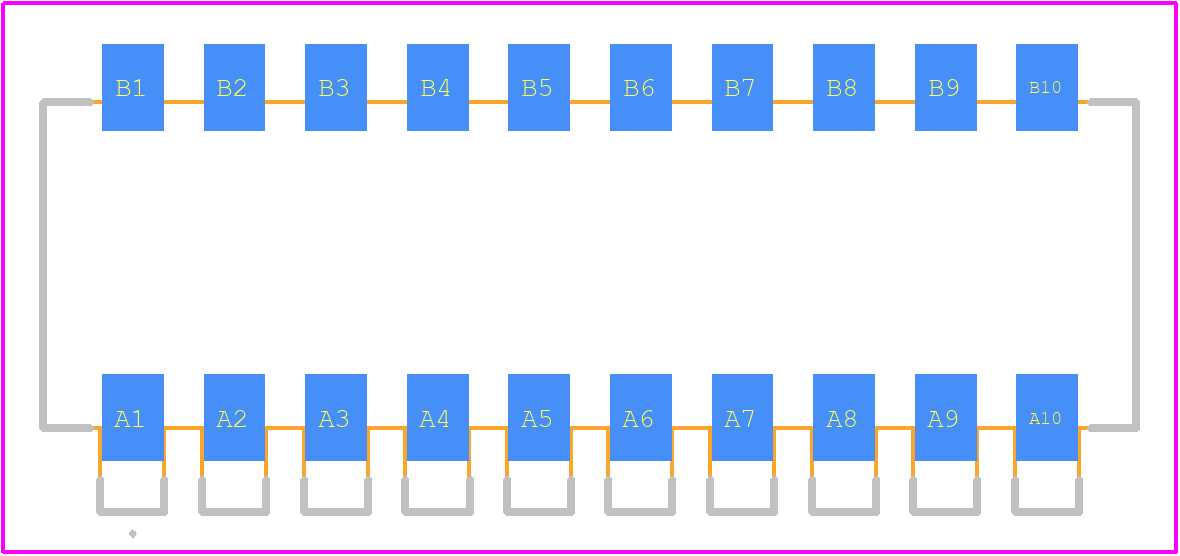

BPA10SBR - LITTELFUSE PCB footprint - Other - Other - BPA10SBR-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for BPA10SBR
Part Number BPA10SBR
Manufacturer LITTELFUSE
Pin Count 20
Part Category Switch
Package Category Other
Footprint Name Other - BPA10SBR-2
Released Date Apr 3, 2024
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

BPA10SBR Details

Manufacturer Part Number:
BPA10SBR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.90.65
Manufacturer:
Littelfuse Inc
YTEOL:
7

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

BPA10SBR Overview

Use the download button to access the BPA10SBR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BPA10, or try a keyword search, such as DIP Switches
