BPF-A127+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download BPF-A127+ Model
Schematic

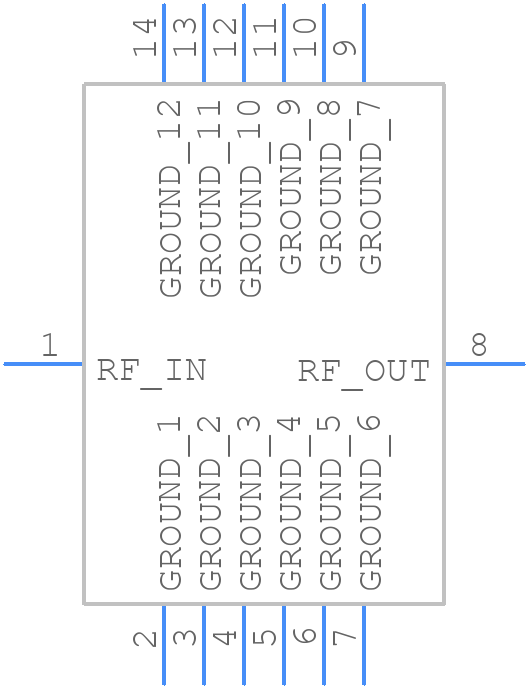

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

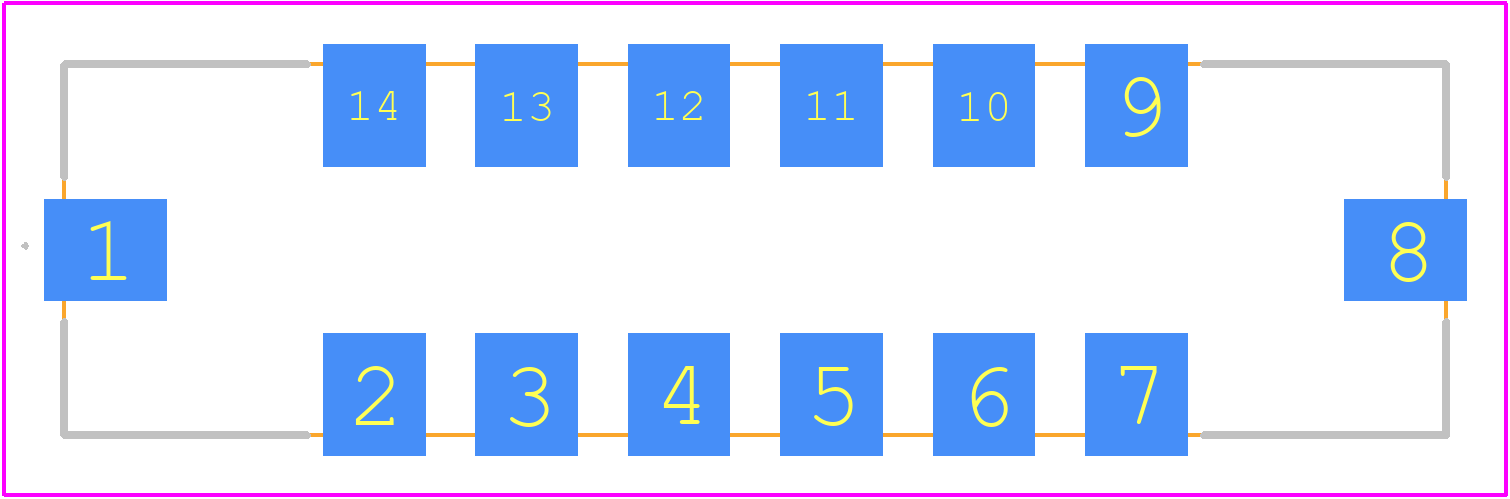

BPF-A127+ - Mini-Circuits PCB footprint - Other - Other - BPF-A127+-1
click to zoom
3D Models
BPF-A127+ - Mini-Circuits  - 3D model - Other - BPF-A127+-1
click to zoom

BPF-A127+ Details

  • Manufacturer Part Number:

    BPF-A127+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Attenuation Frequency-Max:

    2200 MHz

  • Attenuation Frequency-Min:

    105 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    127 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    8.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    4.5 dB

  • Length:

    34.54 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.3

  • Width:

    9.27 mm

BPF-A127+ Frequently Asked Questions (FAQs)

  • The maximum power handling of BPF-A127+ is 1 watt. Exceeding this power limit may cause damage to the device or affect its performance.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's recommended to derate the power handling by 1 dB per 10°C above 60°C to ensure reliable operation.
  • The BPF-A127+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a conjugate match. You can also use a network analyzer to optimize the match.
  • The typical group delay of BPF-A127+ is around 10-20 ns, which is relatively low for a band-pass filter. This makes it suitable for applications where signal delay is critical.
  • While BPF-A127+ is designed for continuous wave (CW) signals, it can be used in switching applications with some precautions. Ensure that the switching frequency is not within the filter's passband, and consider adding additional filtering or shielding to prevent electromagnetic interference (EMI).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BPF-A127+ Overview

Use the download button to access the BPF-A127+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BPF-A, or try a keyword search, such as General Purpose Passive Filters
