- Part Number BPF-A1600+
- Manufacturer Mini-Circuits
- Pin Count 14
- Part Category Filter
- Package Category Other
- Footprint Name Other - BPF-A1600+-1
- Released Date Apr 8, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BPF-A1600+ Details
-
Manufacturer Part Number:
BPF-A1600+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6
-
Average Input Power:
1 W
-
Center or Cutoff Frequency (fo/fc):
1600 MHz
-
Filter Type:
BAND PASS FILTER
-
Height:
8.89 mm
-
Input Impedance:
50 OHM
BPF-A1600+ Frequently Asked Questions (FAQs)
-
The maximum power handling of the BPF-A1600+ is 10 dBm (10 mW). Exceeding this power level may cause damage to the device or affect its performance.
-
The BPF-A1600+ is designed to operate in a temperature range of -40°C to +85°C. However, it's recommended to derate the power handling and operating frequency range in extreme temperature conditions. Additionally, the device is not hermetically sealed, so it may not be suitable for extremely humid or high-vibration environments.
-
The typical insertion loss of the BPF-A1600+ is around 2-3 dB. However, this value can vary depending on the specific application, PCB layout, and connector type used.
-
While the BPF-A1600+ is a high-quality filter, it's not specifically for high-reliability applications. For such applications, it's recommended to consider Mini-Circuits' high-reliability products, such as the HRD series, which are designed and tested to meet more stringent requirements.
-
The BPF-A1600+ is a compact device with a size of 0.5 x 0.5 inches (12.7 x 12.7 mm). However, it's still important to ensure proper clearance and spacing around the device to prevent electromagnetic interference and ensure optimal performance.
Trust Checks
Expert Contribution
System Verified
Community Approved
BPF-A1600+ Overview

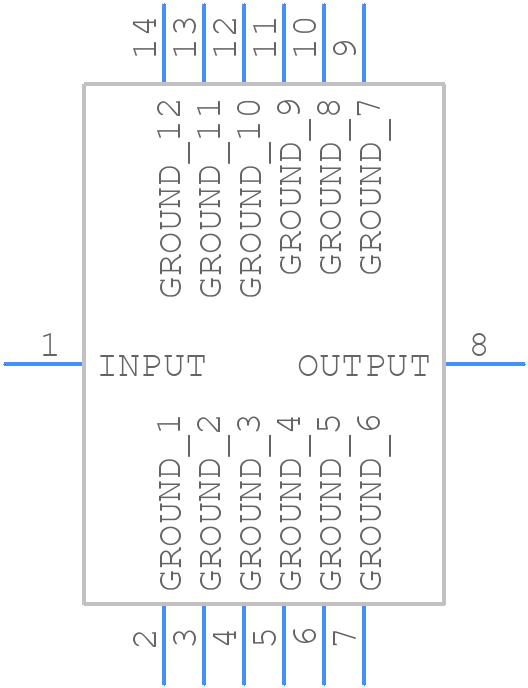

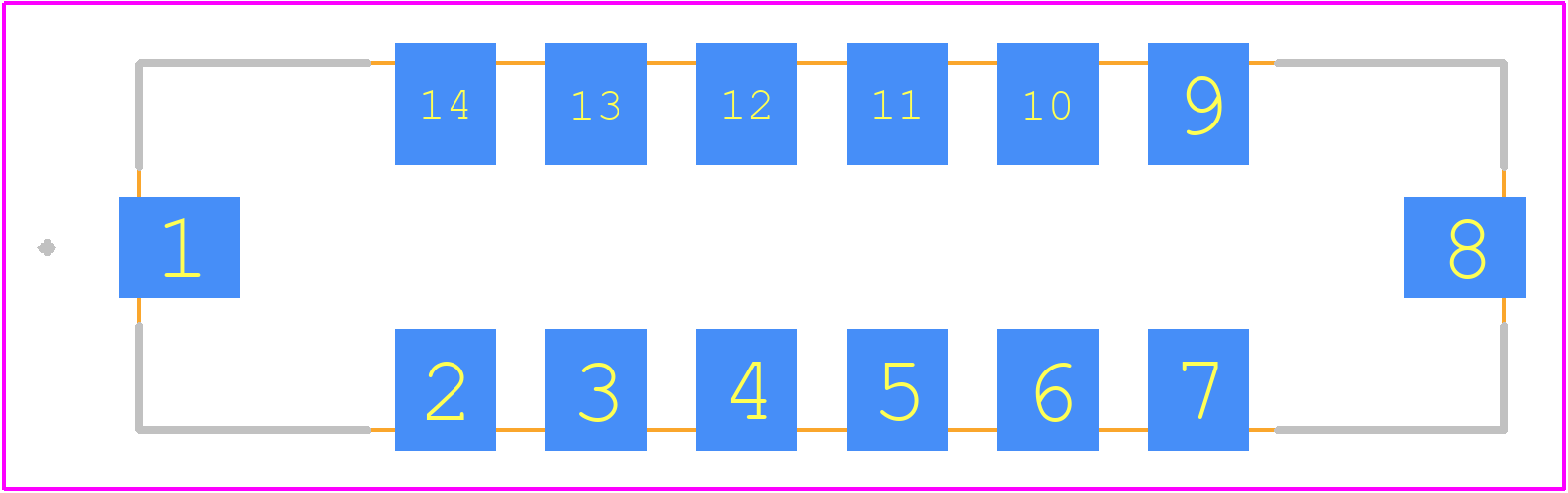

Use the download button to access the BPF-A1600+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BPF-A,
or try a keyword search, such as General Purpose Passive Filters
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
