BPF-A355+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Band Pass Filter, 310 - 400 MHz, 50

Download BPF-A355+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

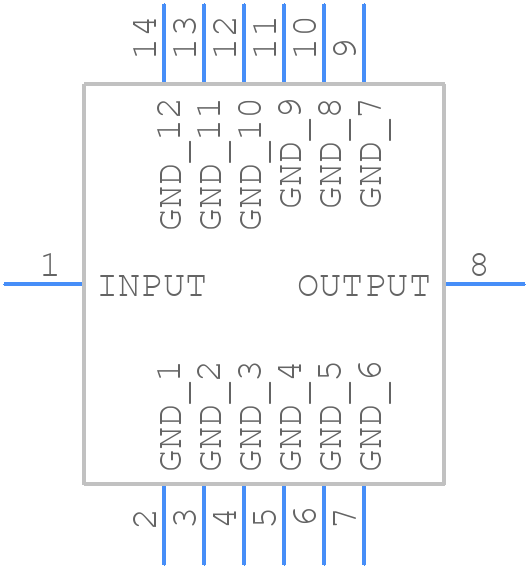

Symbol
BPF-A355+ - Mini-Circuits - PCB symbol
click to zoom

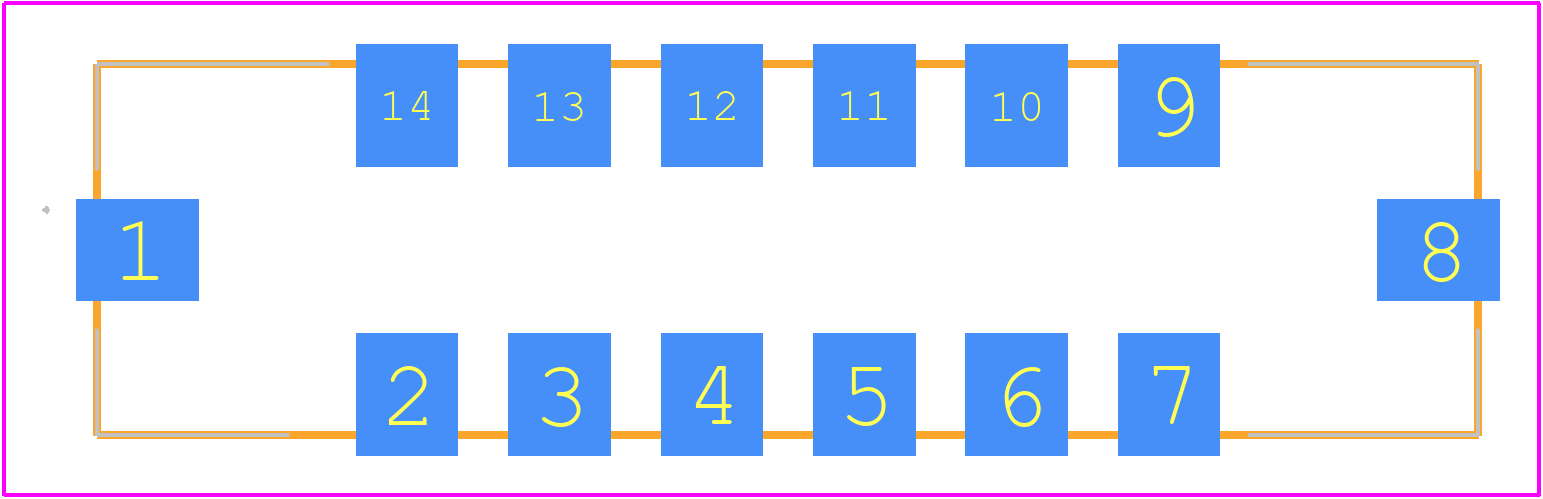

PCB Footprints
BPF-A355+ - Mini-Circuits PCB footprint - Other - Other - BPF-A355+-2
click to zoom
3D Models
BPF-A355+ - Mini-Circuits - 3D model - Other - BPF-A355+-2
click to zoom

BPF-A355+ Details

  • Manufacturer Part Number:

    BPF-A355+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.49

  • Average Input Power:

    0.8 W

  • Center or Cutoff Frequency (fo/fc):

    355 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    8.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.5 dB

  • Length:

    34.54 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.92

  • Width:

    9.27 mm

BPF-A355+ Frequently Asked Questions (FAQs)

  • The maximum power handling of BPF-A355+ is 1 watt, but it's recommended to derate the power to 0.5 watts for continuous operation to ensure reliability and longevity.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's recommended to derate the temperature to +70°C for continuous operation to ensure optimal performance and reliability.
  • BPF-A355+ has a nominal impedance of 50 ohms, but it's recommended to perform impedance matching using a network analyzer or simulation software to ensure optimal performance and minimize insertion loss.
  • While BPF-A355+ is designed to operate in a variety of environments, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or sealing the device in a hermetic package.
  • The typical group delay of BPF-A355+ is around 10-20 ns, but this can vary depending on the specific frequency and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BPF-A355+ Overview

Use the download button to access the BPF-A355+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BPF-A, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
