- Part Number BPF-C450+
- Manufacturer Mini-Circuits
- Pin Count 14
- Part Category Filter
- Package Category Other
- Footprint Name Other - BPF-C450+-2
- Released Date Aug 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BPF-C450+ Details
-
Manufacturer Part Number:
BPF-C450+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CASE HU1186, 14 PIN
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Attenuation Frequency-Max:
760 MHz
-
Attenuation Frequency-Min:
700 MHz
-
Attenuation@Freq-Max:
40 dB
-
Attenuation@Freq-Min:
20 dB
BPF-C450+ Frequently Asked Questions (FAQs)
-
The maximum power handling of the BPF-C450+ is 10W, but it's recommended to derate to 5W for continuous operation to ensure reliability and longevity.
-
The BPF-C450+ is rated for operation up to 65°C, but it's recommended to derate the power handling and consider additional cooling measures for temperatures above 50°C.
-
The BPF-C450+ has a 50Ω input and output impedance. You can use a Smith chart or impedance matching software to design a matching network for your specific system requirements.
-
The typical group delay of the BPF-C450+ is around 10-20 ns, but this can vary depending on the specific frequency and operating conditions.
-
The BPF-C450+ is designed to withstand moderate vibration levels, but it's recommended to consider additional mechanical support and vibration isolation measures for high-vibration environments.
Trust Checks
Expert Contribution
System Verified
Community Approved
BPF-C450+ Overview

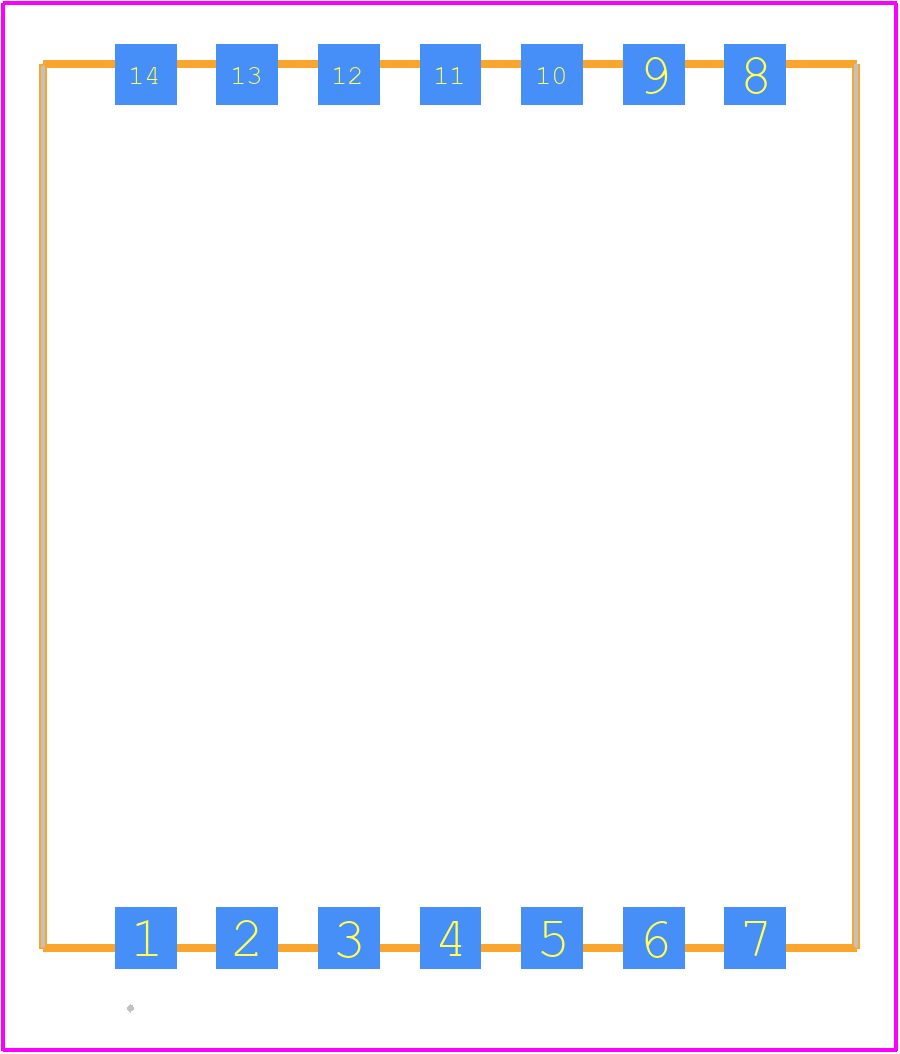

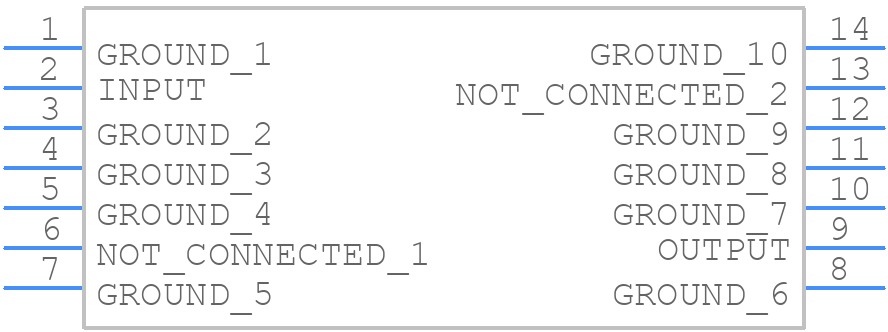

Use the download button to access the BPF-C450+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BPF-C,
or try a keyword search, such as General Purpose Passive Filters
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
