BPF-C495+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download BPF-C495+ Model

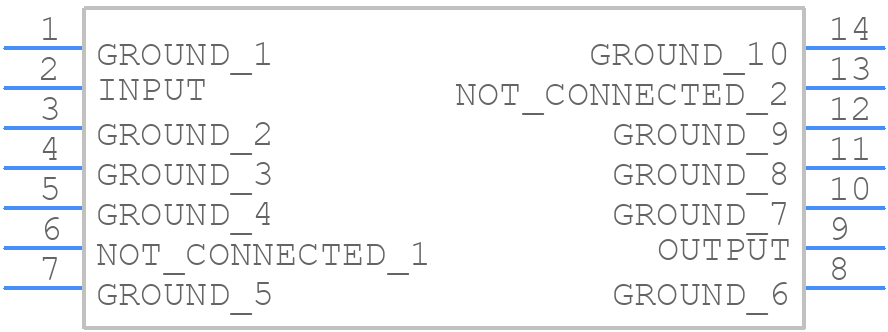

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

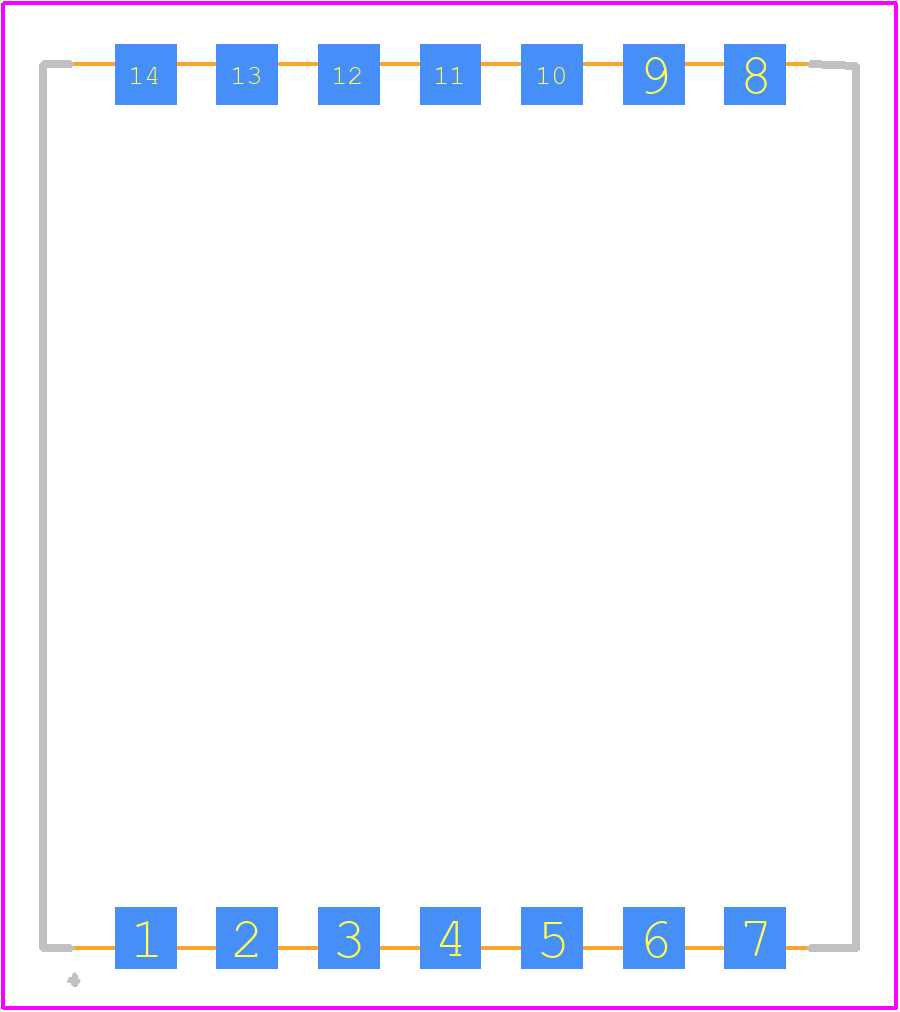

BPF-C495+ - Mini-Circuits PCB footprint - Other - Other - HU1186
click to zoom
3D Models
BPF-C495+ - Mini-Circuits  - 3D model - Other - HU1186
click to zoom

BPF-C495+ Details

  • Manufacturer Part Number:

    BPF-C495+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.49

  • Average Input Power:

    1 W

  • Center or Cutoff Frequency (fo/fc):

    495 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    6.35 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    22.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.8

  • Width:

    20.32 mm

BPF-C495+ Frequently Asked Questions (FAQs)

  • The maximum power handling of BPF-C495+ is 10 dBm (10 mW). Exceeding this power may cause damage to the device.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's recommended to derate the power handling by 1 dBm for every 10°C above 60°C to ensure reliable operation.
  • The BPF-C495+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a conjugate match. You can also use a network analyzer to optimize the match.
  • The typical group delay of BPF-C495+ is around 10-20 ns, which is relatively low for a band-pass filter. This makes it suitable for applications where signal distortion needs to be minimized.
  • While BPF-C495+ is designed for continuous operation, it can be used in switching applications with some precautions. Ensure that the filter is properly biased and that the switching frequency is not within the filter's passband to avoid damage or oscillation.
