BPF-F100+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download BPF-F100+ Model

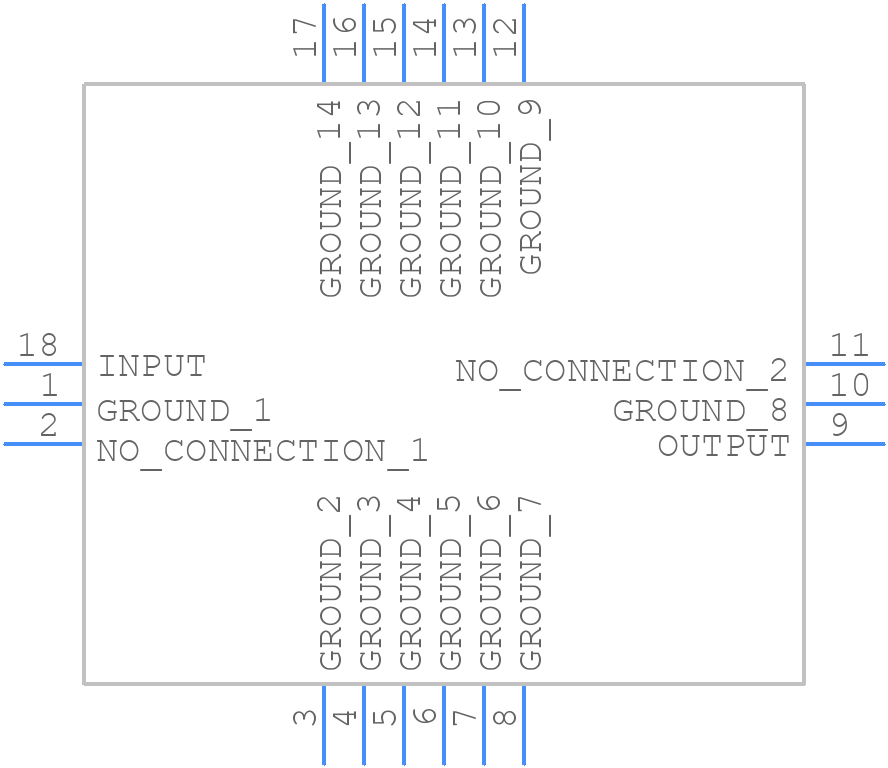

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

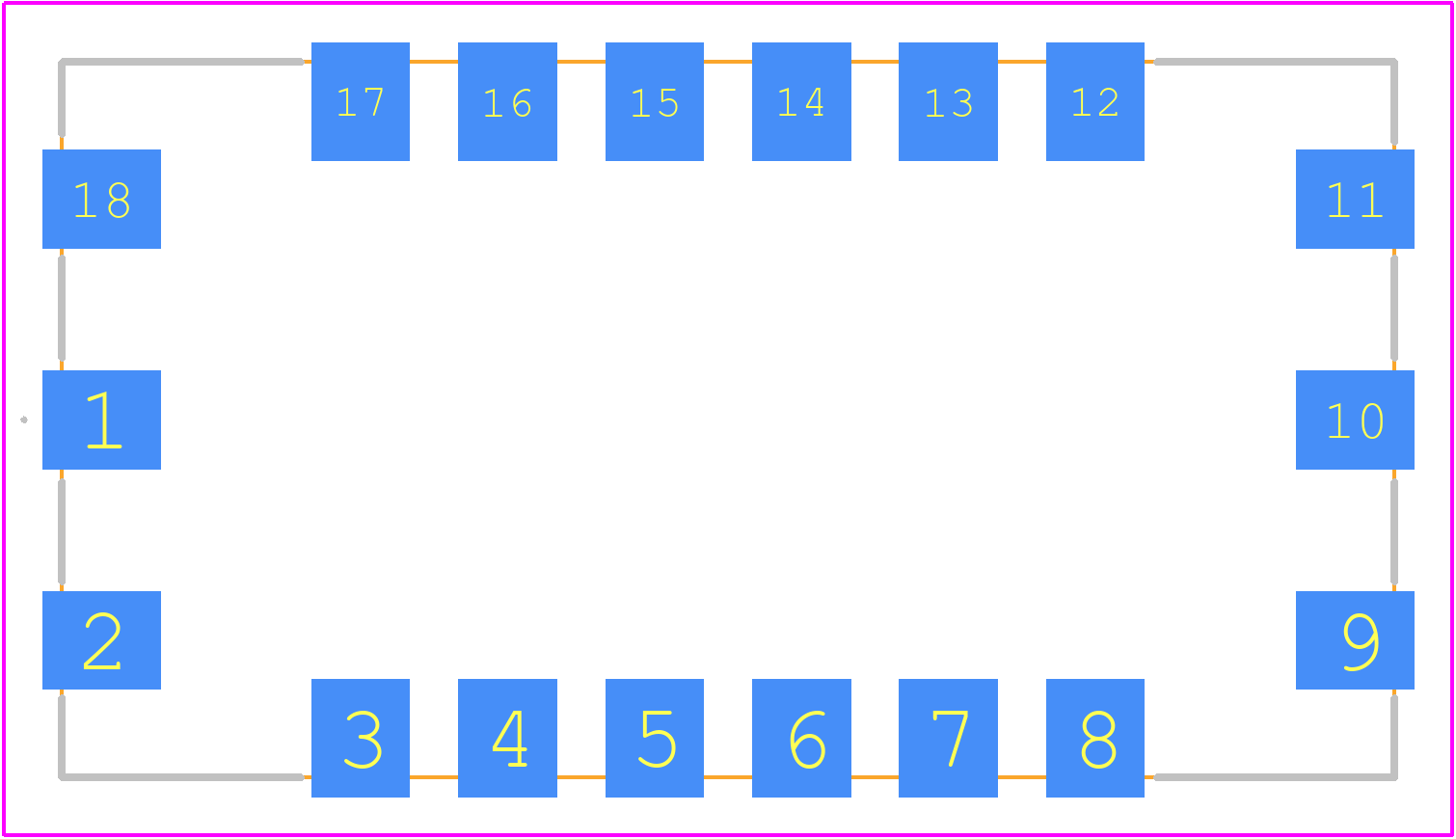

BPF-F100+ - Mini-Circuits PCB footprint - Other - Other - HP1156
click to zoom
3D Models
BPF-F100+ - Mini-Circuits  - 3D model - Other - HP1156
click to zoom

BPF-F100+ Details

  • Manufacturer Part Number:

    BPF-F100+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Average Input Power:

    1 W

  • Center or Cutoff Frequency (fo/fc):

    100 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    8.89 mm

  • Input Connector:

    SMA FEMALE

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    6 dB

  • Length:

    34.54 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Connector:

    SMA FEMALE

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 13 INCH

  • VSWR:

    1.58

  • Width:

    18.54 mm

BPF-F100+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the BPF-F100+ is 1 watt, but it's recommended to derate the power to 0.5 watts for long-term reliability.
  • The BPF-F100+ is rated for operation up to 65°C, but it's not recommended to use it above 50°C for optimal performance and reliability. If you need to operate it at higher temperatures, you should derate the power and consult with Mini-Circuits' application engineers.
  • The typical group delay of the BPF-F100+ is around 10-20 ns, but it can vary depending on the specific frequency and operating conditions. If you need a specific group delay, you should consult with Mini-Circuits' application engineers.
  • The BPF-F100+ is not hermetically sealed, so it's not recommended to use it in high-humidity environments. If you need to operate it in a humid environment, you should take precautions to prevent moisture ingress, such as conformal coating or potting.
  • The recommended PCB layout for the BPF-F100+ involves using a ground plane, keeping the input and output traces short and symmetrical, and avoiding vias and right-angle bends near the filter. You should also follow good RF design practices, such as using a 50-ohm impedance and minimizing parasitic inductance and capacitance.
