Tamura Corporation provides a recommended PCB layout and land pattern in their application note AN-001, which can be requested from their sales team or found on their website. It's essential to follow this layout to ensure proper thermal management and minimize electromagnetic interference.
Tamura Corporation recommends following the J-STD-001 standard for soldering and rework. Additionally, they provide a rework guide in their application note AN-002, which outlines the procedures for reflow soldering, wave soldering, and manual soldering.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade above 100°C. For optimal performance, it's recommended to operate the device within the -20°C to 85°C range.
Yes, the BPM1527SJ is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) according to the IEC 60068-2-6 standard. However, it's crucial to ensure proper PCB mounting and secure the device to prevent damage or dislodging.
Tamura Corporation provides a troubleshooting guide in their application note AN-003, which covers common issues and their solutions. Additionally, their technical support team is available to assist with any troubleshooting or design-related questions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BPM1527SJ Overview

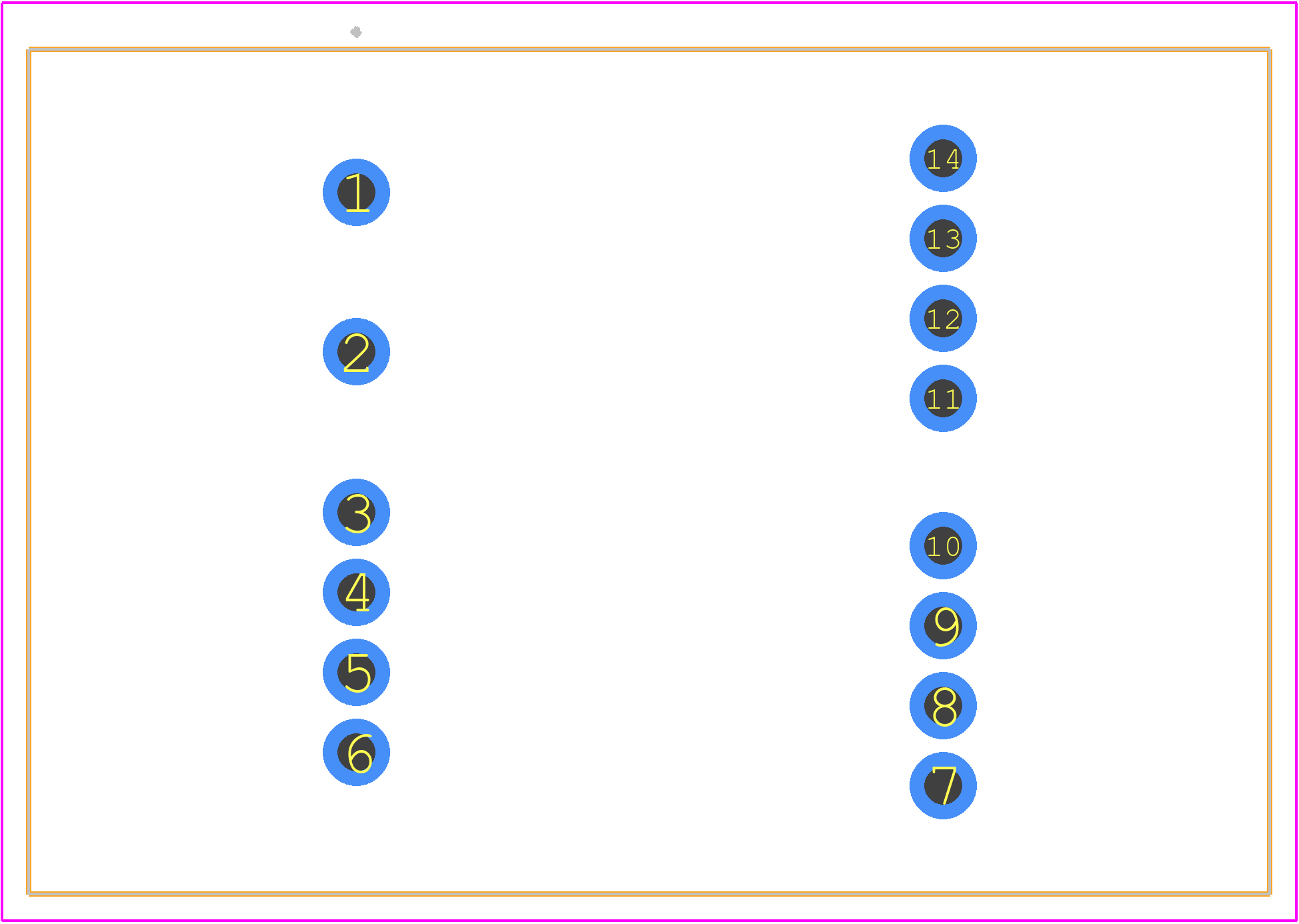

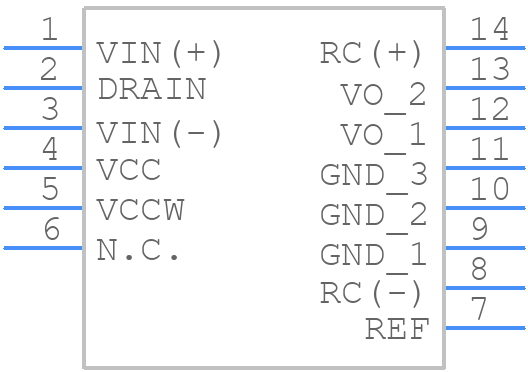

Use the download button to access the BPM1527SJ schematic symbol, PCB footprint, and 3D model.
