Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and to prevent overheating.
The current sense resistor value depends on the maximum current, desired voltage drop, and power dissipation. Bourns provides a current sense resistor selection guide in their application note AN165, which can help engineers choose the correct value for their specific application.
Although the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the derating curves for power dissipation and temperature. Bourns recommends consulting their application notes and thermal management guidelines to ensure the device operates within a safe temperature range.
While the BPS110-AD01P0-2DG is a robust device, it's crucial to consider the mechanical stress and vibration tolerance. Bourns recommends following their guidelines for mechanical stress and vibration testing, as outlined in their application note AN166, to ensure the device can withstand the environmental conditions.
To ensure EMC, it's essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding if necessary. Bourns provides EMC design guidelines in their application note AN167, which can help engineers minimize electromagnetic interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BPS110-AD01P0-2DG Overview

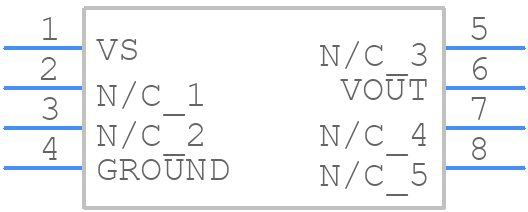

Use the download button to access the BPS110-AD01P0-2DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BPS11,
or try a keyword search, such as Pressure Sensors
