BPS120-AD0P15-2DG footprint, schematic symbol and 3D model by Bourns

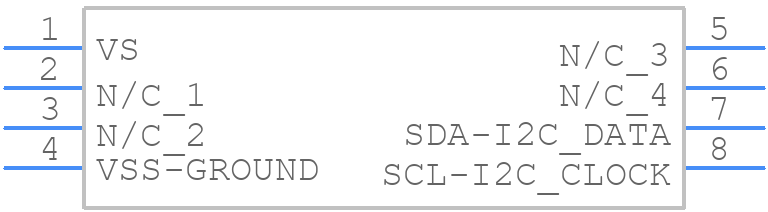

Symbol

click to zoom

PCB Footprints

BPS120-AD0P15-2DG - Bourns PCB footprint - Other - Other - BPS120-AD0P15-2DG-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BPS120-AD0P15-2DG
Part Number BPS120-AD0P15-2DG
Manufacturer Bourns
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BPS120-AD0P15-2DG-3
Released Date Aug 11, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BPS120-AD0P15-2DG Details

Manufacturer Part Number:
BPS120-AD0P15-2DG
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
Factory Lead Time:
24 Weeks
Date Of Intro:
2019-02-27
Manufacturer:
Bourns Inc
YTEOL:
8
Accuracy-Max (%):
0.25%
Body Breadth:
10.2 mm
Body Length or Diameter:
12.7 mm
Mounting Feature:
SURFACE MOUNT
Number of Bits:
13
Operating Current-Max:
3.5 mA
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Interface Type:
I2C INTERFACE
Output Type:
DIGITAL OUTPUT
Package Shape/Style:
RECTANGULAR
Port Type:
STRAIGHT
Pressure Sensing Mode:
DIFFERENTIAL
Sensors/Transducers Type:
PRESSURE SENSOR, MEMS, PIEZORESISTIVE
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.7 V
Surface Mount:
YES
Termination Type:
SOLDER

BPS120-AD0P15-2DG Frequently Asked Questions (FAQs)

Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the device. Ensure the PCB is clean and free of oxidation before soldering.
The device is rated for operation from -40°C to +125°C, but derating may be necessary for high-temperature applications. Consult the datasheet for specific derating guidelines.
Yes, the device is designed to withstand vibrations up to 10g peak acceleration, but it's essential to ensure proper PCB mounting and secure the device to prevent mechanical stress.
Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure the device is stored in an ESD-protective package when not in use.

Trust Checks

Community Provided

System Verified

Community Approved

BPS120-AD0P15-2DG Overview

Use the download button to access the BPS120-AD0P15-2DG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BPS12, or try a keyword search, such as Pressure Sensors
