Part Image

BR05-1516LB - Bellnix

Description: Bellnix Isolated DC-DC Converter Through Hole, Vout ±15V dc, I/O isolation 500V

Download BR05-1516LB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BR05-1516LB - Bellnix - PCB symbol
click to zoom
PCB Footprints

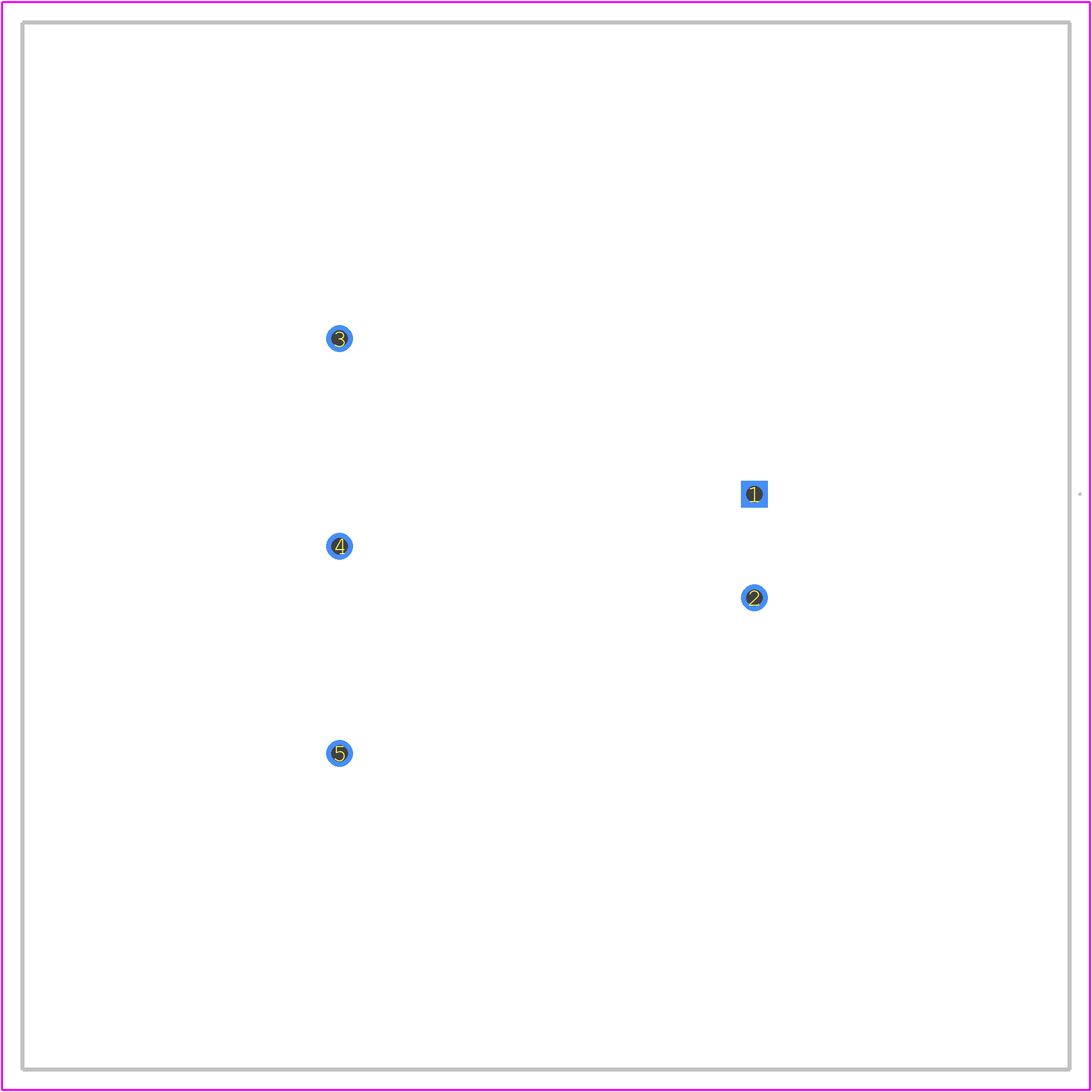

BR05-1516LB - Bellnix PCB footprint - Other - Other - BR05-1516LB-2
click to zoom
3D Models
BR05-1516LB - Bellnix - 3D model - Other - BR05-1516LB-2
click to zoom

BR05-1516LB Details

  • Manufacturer Part Number:

    BR05-1516LB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT, METAL, PACKAGE-5

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bellnix Co Ltd

  • Additional Feature:

    ADDITIONAL -15V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-MDMA-P5

  • Length:

    51.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    5

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    9.8 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    51.2 mm

BR05-1516LB Frequently Asked Questions (FAQs)

  • The recommended storage condition for the BR05-1516LB is in a dry, cool place with a temperature range of -20°C to 40°C and humidity below 60%. Avoid storing the component in direct sunlight or near heat sources.
  • Yes, the BR05-1516LB is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and can be used in high-vibration applications. However, it's recommended to consult with Bellnix Co Ltd or a qualified engineer to ensure the component meets the specific vibration requirements of your application.
  • The maximum soldering temperature for the BR05-1516LB is 260°C for a maximum of 10 seconds. Exceeding this temperature or time may damage the component.
  • Yes, the BR05-1516LB is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other regions with similar regulations.
  • The typical lead time for delivery of the BR05-1516LB varies depending on the quantity and availability. However, Bellnix Co Ltd typically quotes a lead time of 4-6 weeks for standard orders. It's recommended to contact Bellnix Co Ltd or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BR05-1516LB Overview

Use the download button to access the BR05-1516LB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BR05-, or try a keyword search, such as Power Supply Modules
