BR05-PCB - Custom Connector

Description: Relay Socket For automotive relays 5 Pin PCB terminals, BR Series

Download BR05-PCB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BR05-PCB - Custom Connector - PCB symbol
click to zoom
PCB Footprints

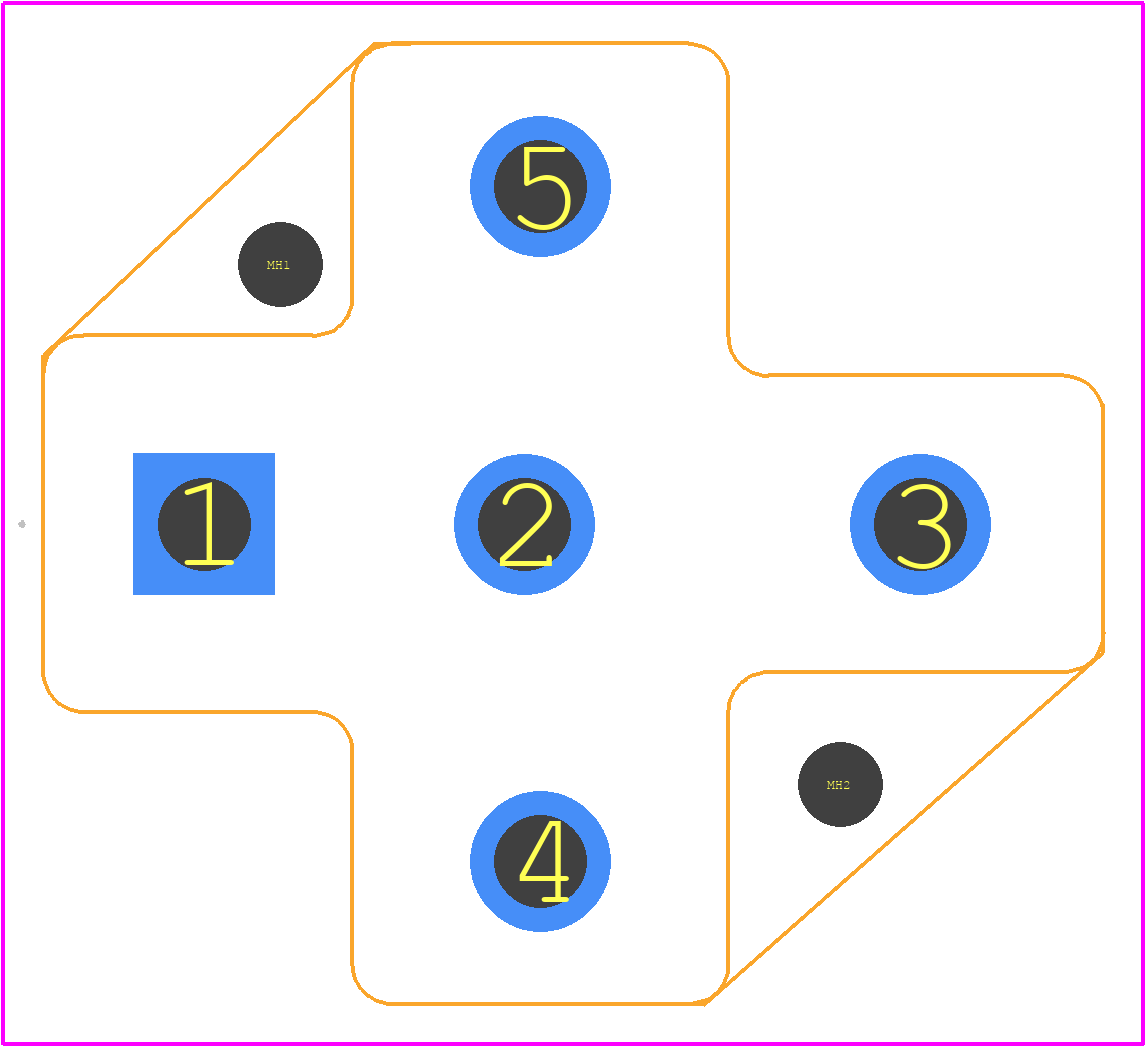

BR05-PCB - Custom Connector PCB footprint - Other - Other - BR05-PCB-3
click to zoom
3D Models
BR05-PCB - Custom Connector - 3D model - Other - BR05-PCB-3
click to zoom

BR05-PCB Details

  • Manufacturer Part Number:

    BR05-PCB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Custom Connector Corporation

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    RELAY

  • Housing Material:

    POLYETHYLENE

  • Number of Contacts:

    5

BR05-PCB Frequently Asked Questions (FAQs)

  • The recommended PCB thickness for the BR05-PCB is 1.57 mm (0.062 in) to ensure proper mating and to prevent damage to the connector.
  • Yes, the BR05-PCB is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque to prevent connector damage.
  • The maximum operating temperature for the BR05-PCB is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • The BR05-PCB is not designed for use in humid or wet environments. If exposure to moisture is unavoidable, consider using a connector with a higher IP rating or applying a conformal coating to protect the PCB.
  • The recommended torque for the BR05-PCB screws is 0.5 Nm (4.4 in-lbs) to ensure proper mating and to prevent damage to the connector or PCB.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BR05-PCB Overview

Use the download button to access the BR05-PCB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BR05-, or try a keyword search, such as Sockets and Chip Carriers
