BR68 - GeneSiC Semiconductor

Description: Bridge Rectifiers SI BRIDGE RECT BR-10 50-1KV 6A 800P/560R

Download BR68 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

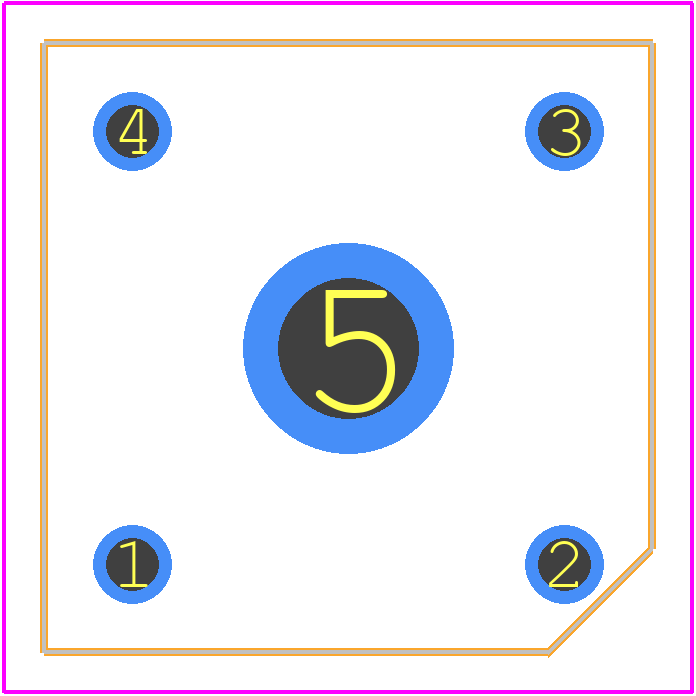

BR68 - GeneSiC Semiconductor PCB footprint - Other - Other - BR68-2
click to zoom
3D Models
BR68 - GeneSiC Semiconductor  - 3D model - Other - BR68-2
click to zoom

BR68 Details

  • Manufacturer Part Number:

    BR68

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    GeneSic Semiconductor Inc

  • YTEOL:

    7

  • Breakdown Voltage-Min:

    800 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.05 V

  • JESD-30 Code:

    S-PUFM-W4

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Rep Pk Reverse Voltage-Max:

    800 V

  • Reverse Current-Max:

    10 µA

  • Reverse Test Voltage:

    800 V

  • Surface Mount:

    NO

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER
