The recommended operating temperature range for the BS8112A-3 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate up to 105°C for short periods, but this may affect its reliability and lifespan.
To ensure proper power supply, connect the VCC pin to a stable 5V power source, and the GND pin to a reliable ground connection. Additionally, decouple the power supply with a 10uF capacitor between VCC and GND to reduce noise and ensure stable operation.
The BS8112A-3 can operate up to a maximum clock frequency of 20MHz. However, it's recommended to operate the device at a clock frequency of 16MHz or lower to ensure reliable operation and minimize power consumption.
To configure the BS8112A-3 for low-power operation, set the Power-Down Mode (PD) bit in the Control Register to '1'. This will reduce the power consumption of the device. Additionally, you can also use the Idle Mode (IDLE) bit to further reduce power consumption when the device is not actively transmitting or receiving data.
The BS8112A-3 supports a maximum data transfer rate of 115.2 kbps in asynchronous mode and 1 Mbps in synchronous mode.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BS8112A-3 Overview

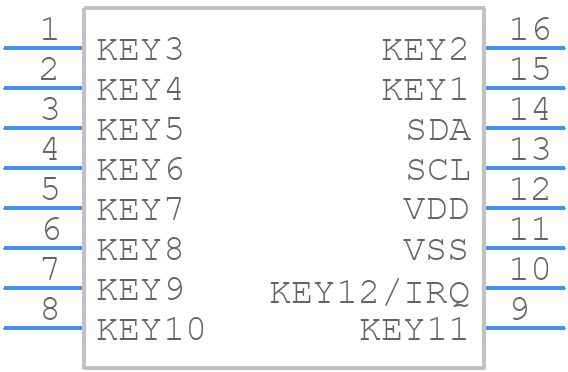

Use the download button to access the BS8112A-3 schematic symbol, PCB footprint, and 3D model.
