Part Image

BS813A-1 - Holtek

Description: Standard 3-Touch Keys

Download BS813A-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

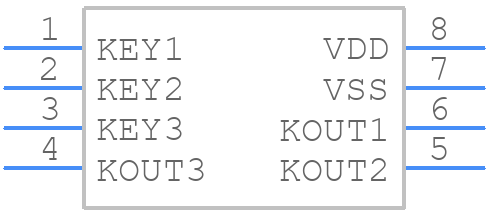

BS813A-1 - Holtek - PCB symbol
click to zoom
PCB Footprints
BS813A-1 - Holtek PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOP (150mil
click to zoom
3D Models
BS813A-1 - Holtek - 3D model - Small Outline Packages - 8-pin SOP (150mil
click to zoom

BS813A-1 Details

  • Manufacturer Part Number:

    BS813A-1

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Holtek Semiconductor Inc

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BS813A-1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BS813A-1 is -40°C to 85°C, although it can tolerate storage temperatures from -50°C to 150°C.
  • To ensure proper power-on and power-off, make sure to follow the recommended power-up and power-down sequences, and provide a stable power supply with minimal noise and ripple.
  • The maximum allowable voltage on the input pins is 5.5V, exceeding which may cause damage to the device.
  • While the BS813A-1 is designed to operate in a wide range of environmental conditions, it's still recommended to take precautions against moisture and humidity to prevent damage or corrosion.
  • To troubleshoot issues, start by checking the power supply, clock signal, and input/output connections. Use a logic analyzer or oscilloscope to verify signal integrity and timing. Consult the datasheet and application notes for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BS813A-1 Overview

Use the download button to access the BS813A-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BS813, or try a keyword search, such as Other Signal Circuits
