BSB165N15NZ3GXUMA1 - Infineon

Description: MOSFET N-Ch 150V 45A CanPAK3 MZ OptiMOS 3

Download BSB165N15NZ3GXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

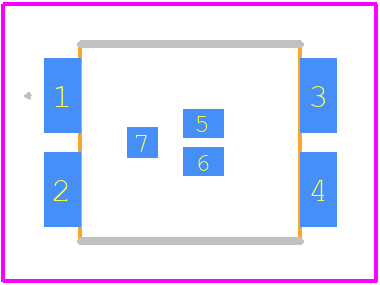

PCB Footprints
BSB165N15NZ3GXUMA1 - Infineon PCB footprint - Other - Other - MG-WDSON-2_ 2023
click to zoom
3D Models
BSB165N15NZ3GXUMA1 - Infineon  - 3D model - Other - MG-WDSON-2_ 2023
click to zoom

BSB165N15NZ3GXUMA1 Details

  • Manufacturer Part Number:

    BSB165N15NZ3GXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, METAL, WDSON-2, CANPAK-3

  • Pin Count:

    3

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    440 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    150 V

  • Drain Current-Max (ID):

    9 A

  • Drain-source On Resistance-Max:

    0.0165 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-MBCC-N3

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    METAL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    78 W

  • Pulsed Drain Current-Max (IDM):

    180 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Silver/Nickel (Ag/Ni)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSB165N15NZ3GXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BSB165N15NZ3GXUMA1 is -55°C to 175°C.
  • To ensure the MOSFET is fully turned on, apply a gate-source voltage (Vgs) of at least 10V, and ensure the gate current is sufficient to charge the gate capacitance quickly.
  • The recommended gate resistor value depends on the specific application, but a typical value is between 10Ω to 100Ω. A lower value can help reduce switching losses, while a higher value can help reduce electromagnetic interference (EMI).
  • Use a voltage clamp or a transient voltage suppressor (TVS) to protect the MOSFET from overvoltage. For overcurrent protection, use a current sense resistor and a comparator or a dedicated overcurrent protection IC.
  • The maximum allowable power dissipation for the BSB165N15NZ3GXUMA1 is 150W. However, this value can be derated based on the operating temperature and other factors.
