BSC010N04LS - Infineon

Description: Infineon BSC010N04LS N-channel MOSFET Transistor, 100 A, 40 V, 8-Pin TDSON

Download BSC010N04LS Model

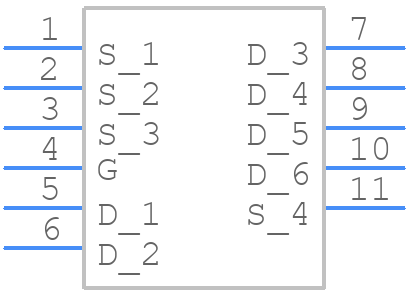

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BSC010N04LS - Infineon PCB footprint - Other - Other - PG-TDSON-8-17 | SuperSO8 FL
click to zoom
3D Models
BSC010N04LS - Infineon  - 3D model - Other - PG-TDSON-8-17 | SuperSO8 FL
click to zoom

BSC010N04LS Details

  • Manufacturer Part Number:

    BSC010N04LS

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    330 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    38 A

  • Drain-source On Resistance-Max:

    0.0013 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    400 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSC010N04LS Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the BSC010N04LS is 100 kHz, but it can be operated at higher frequencies with reduced performance.
  • The BSC010N04LS has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure proper cooling. Additionally, the device should be mounted on a PCB with a thermal via to dissipate heat efficiently.
  • The recommended gate resistor value for the BSC010N04LS is between 10 Ω to 100 Ω, depending on the specific application and switching frequency. A higher gate resistor value can reduce electromagnetic interference (EMI) but may increase switching losses.
  • Yes, the BSC010N04LS is qualified according to the AEC-Q101 standard, which makes it suitable for high-reliability applications such as automotive systems. However, additional testing and validation may be required to ensure the device meets the specific requirements of the application.
  • The BSC010N04LS has an integrated ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging and storage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BSC010N04LS Overview

Use the download button to access the BSC010N04LS schematic symbol, PCB footprint, and 3D model.
