A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
Ensure that the device is operated within the specified junction temperature range (TJ) of -40°C to 150°C. Implement a thermal management system, such as a heat sink or fan, to keep the device temperature below 125°C.
A gate drive circuit with a voltage source (e.g., 12V or 15V) and a current-limiting resistor (e.g., 10Ω to 20Ω) is recommended. The gate drive voltage should be set to VGS = 10V to ensure proper switching.
Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage from voltage spikes and excessive current. A TVS diode and a fuse or PTC can be used for OVP and OCP, respectively.
A dead time of 100ns to 200ns is recommended to prevent shoot-through currents and ensure proper switching. The dead time can be adjusted based on the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BSF450NE7NH3XUMA1 Overview

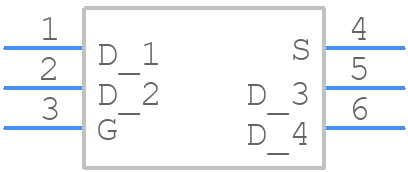

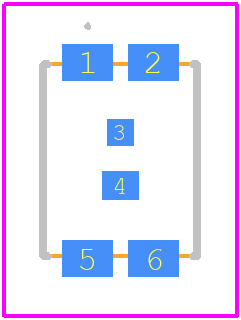

Use the download button to access the BSF450NE7NH3XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BSF45,
or try a keyword search, such as Power Field-Effect Transistors
