BSH-060-01-H-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

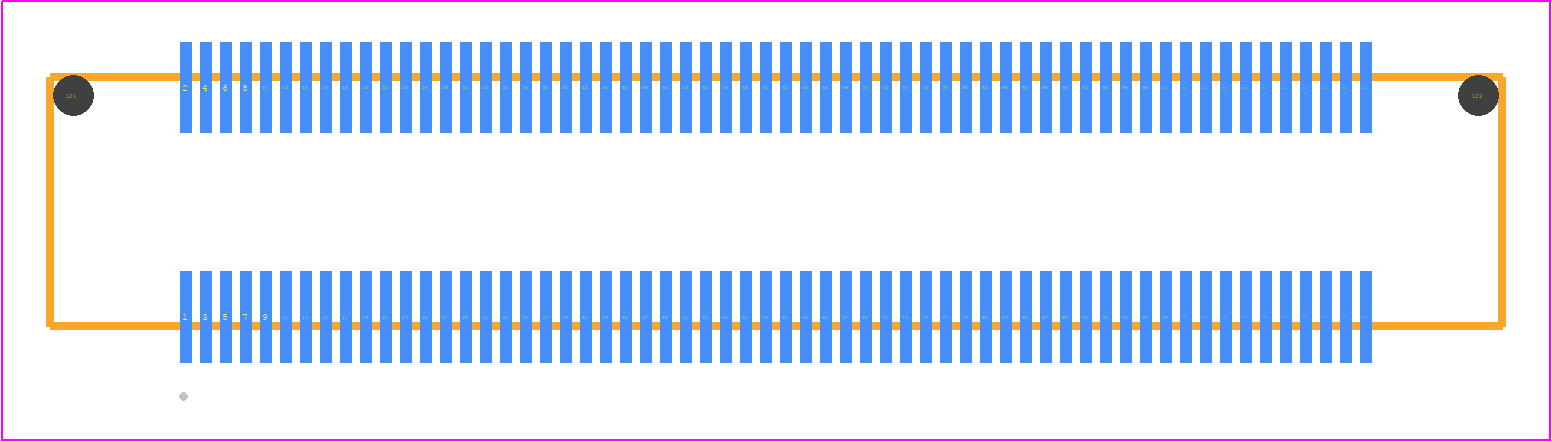

BSH-060-01-H-D-A - SAMTEC PCB footprint - Other - Other - BSH-060-01-X-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BSH-060-01-H-D-A
Part Number BSH-060-01-H-D-A
Manufacturer SAMTEC
Pin Count 120
Part Category Connector
Package Category Other
Footprint Name Other - BSH-060-01-X-D-A
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BSH-060-01-H-D-A Details

Manufacturer Part Number:
BSH-060-01-H-D-A
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Costa Rica
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Material:
NOT SPECIFIED
JESD-609 Code:
e4

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

BSH-060-01-H-D-A Overview

Use the download button to access the BSH-060-01-H-D-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BSH-0, or try a keyword search, such as Headers and Edge Type Connectors
