BSH-120-01-F-D-TR - SAMTEC

BSH-120-01-F-D-TR Details

• Manufacturer Part Number:

  BSH-120-01-F-D-TR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Direct Group:

  CH3005040209902YY00200670104YYY0301YY06YY2202

• Similar Group:

  CH3005040209902YY00200670104YYY0301YY06

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  10

• Additional Feature:

  TAPE & REEL PACKAGING

• Body Breadth:

  0.285 inch

• Body Depth:

  0.12 inch

• Body Length:

  2.609 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Filter Feature:

  NO

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.02 inch

• Mixed Contacts:

  NO

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

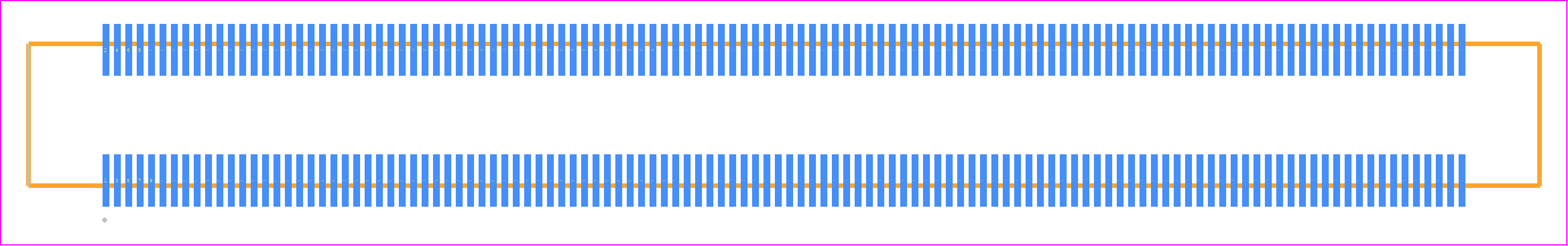

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.715 mm

• Packing Method:

  TR

• Plating Thickness:

  FLASH inch

• Polarization Key:

  SHRD ENDS

• Rated Current (Signal):

  1.25 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.508 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  240
