BSH-150-01-H-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

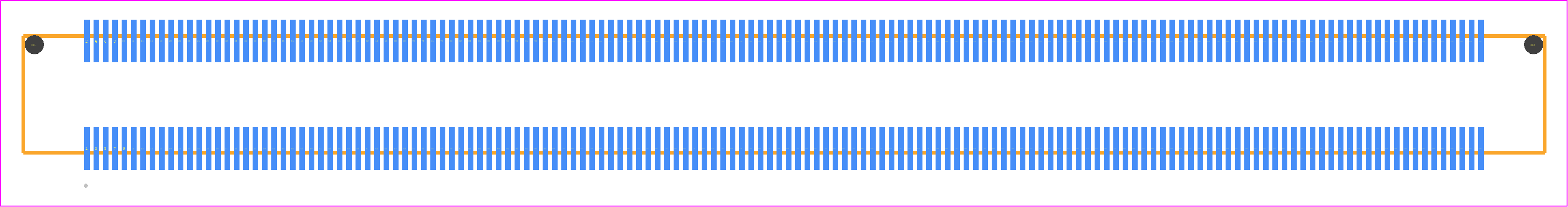

BSH-150-01-H-D-A - SAMTEC PCB footprint - Other - Other - BSH-150-01-X-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BSH-150-01-H-D-A
Part Number BSH-150-01-H-D-A
Manufacturer SAMTEC
Pin Count 300
Part Category Connector
Package Category Other
Footprint Name Other - BSH-150-01-X-D-A
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BSH-150-01-H-D-A Details

Manufacturer Part Number:
BSH-150-01-H-D-A
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Costa Rica, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
Connector Type:
BOARD CONNECTOR
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
JESD-609 Code:
e4

BSH-150-01-H-D-A Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the connectors by aligning the guide pins on the plug with the guide holes on the receptacle, then pushing the plug into the receptacle until it clicks into place.
Proper polarization is ensured by the unique keying feature on the plug and receptacle, which prevents mis-mating. The keying feature ensures that the plug can only be inserted into the receptacle in one orientation.
The maximum operating temperature range for the BSH-150-01-H-D-A connector is -55°C to +125°C, as specified in the datasheet.
Yes, the BSH-150-01-H-D-A connector is designed to withstand high-vibration applications. Samtec's BSH series connectors have been tested to meet the requirements of various vibration standards, including IEC 61373 and MIL-STD-202.
The recommended torque for the screws on the BSH-150-01-H-D-A connector is 0.5-1.5 in-lbs (0.056-0.169 Nm), as specified in the datasheet.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

BSH-150-01-H-D-A Overview

Use the download button to access the BSH-150-01-H-D-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BSH-1, or try a keyword search, such as Headers and Edge Type Connectors
