BSH-150-01-L-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

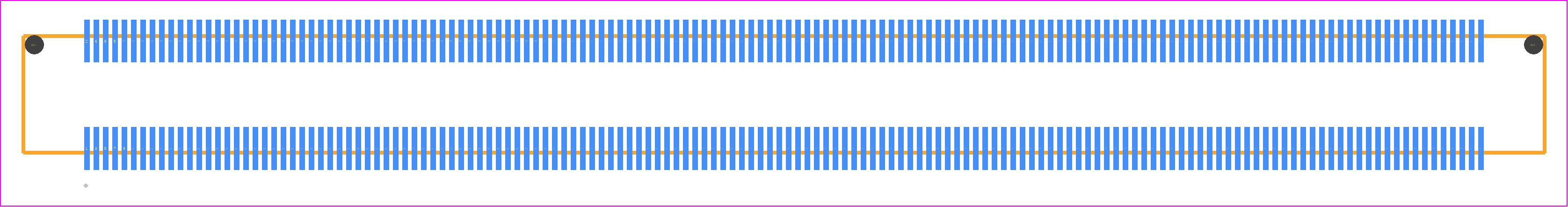

PCB Footprints

BSH-150-01-L-D-A - SAMTEC PCB footprint - Other - Other - BSH-150-01-X-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BSH-150-01-L-D-A
Part Number BSH-150-01-L-D-A
Manufacturer SAMTEC
Pin Count 300
Part Category Connector
Package Category Other
Footprint Name Other - BSH-150-01-X-D-A
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BSH-150-01-L-D-A Details

Manufacturer Part Number:
BSH-150-01-L-D-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
4 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
8.68
Additional Feature:
E.L.P.
Board Mounting Option:
POSITIONING PIN
Body Breadth:
0.285 inch
Body Depth:
0.12 inch
Body Length:
3.2 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.02 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
5.715 mm
Plating Thickness:
10u inch
Polarization Key:
SHRD ENDS
Rated Current (Signal):
1.25 A
Reference Standard:
UL
Terminal Pitch:
0.5 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
300
UL Flammability Code:
94V-0

BSH-150-01-L-D-A Frequently Asked Questions (FAQs)

The recommended mating sequence for the BSH-150-01-L-D-A connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the BSH-150-01-L-D-A connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration, such as aerospace, automotive, and industrial control systems.
The BSH-150-01-L-D-A connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including those with extreme temperature requirements.
Yes, the BSH-150-01-L-D-A connector is compatible with lead-free soldering processes. It is designed to meet the requirements of RoHS and WEEE directives, making it suitable for use in environmentally friendly applications.
The typical insertion force for the BSH-150-01-L-D-A connector is around 10-15 N (2.2-3.3 lbf) per contact. However, this may vary depending on the specific application and mating sequence.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

BSH-150-01-L-D-A Overview

Use the download button to access the BSH-150-01-L-D-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BSH-1, or try a keyword search, such as Headers and Edge Type Connectors
