BSP742R - Infineon

Description: Infineon BSP742R, Multiplexer Switch IC, 5 → 34 V, 8-Pin DSO

Download BSP742R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

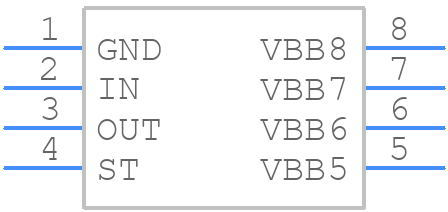

Symbol
BSP742R - Infineon - PCB symbol
click to zoom
PCB Footprints
BSP742R - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8-24
click to zoom
3D Models
BSP742R - Infineon - 3D model - Small Outline Packages - PG-DSO-8-24
click to zoom

BSP742R Details

  • Manufacturer Part Number:

    BSP742R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    14

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    170 µs

  • Turn-on Time:

    140 µs

  • Width:

    4 mm

BSP742R Frequently Asked Questions (FAQs)

  • Infineon recommends a 4-layer PCB with a solid ground plane, and to keep the high-frequency traces as short as possible. Additionally, a common mode choke can be used to filter out EMI.
  • The BSP742R has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and a heat sink or a metal plate on the PCB. Apply a thin layer of thermal interface material (TIM) to improve heat transfer.
  • The maximum allowed voltage on the input pins of the BSP742R is 5.5V. Exceeding this voltage may damage the device.
  • The BSP742R is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper cooling and consider derating the device's specifications at high temperatures.
  • Check the input voltage, current, and temperature of the device. Verify that the PCB layout and component selection meet the recommended specifications. Use an oscilloscope to analyze the input and output waveforms. Consult the datasheet and application notes for troubleshooting guidelines.
