- Part Number BSS-125-01-F-D
- Manufacturer SAMTEC
- Pin Count 250
- Part Category Connector
- Package Category Other

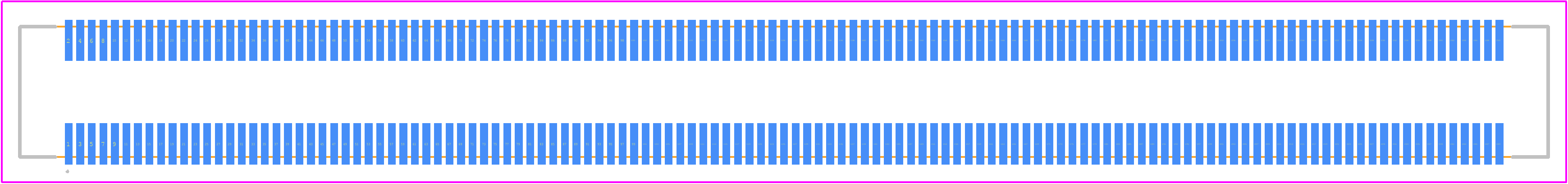

- Footprint Name Other - BSS-125-01-F-D-2
- Released Date Dec 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BSS-125-01-F-D Details
-
Manufacturer Part Number:
BSS-125-01-F-D
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Samtec Inc
-
YTEOL:
9
-
Additional Feature:
NONE
-
Body Breadth:
0.285 inch
-
Body Depth:
0.135 inch
BSS-125-01-F-D Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the BSS-125-01-F-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
-
Yes, the BSS-125-01-F-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
-
The maximum operating temperature for the BSS-125-01-F-D connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
-
The BSS-125-01-F-D connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors, such as the IP67-rated SEARAY series, for applications that require moisture resistance.
-
The recommended mating cycle for the BSS-125-01-F-D connector is 500-1000 cycles, depending on the application and environmental conditions. Samtec recommends following their guidelines for connector mating and unmating to ensure reliable connections.
Trust Checks
Community Provided
System Verified
Community Approved
BSS-125-01-F-D Overview
Use the download button to access the BSS-125-01-F-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BSS-1,
or try a keyword search, such as Headers and Edge Type Connectors
