BSZ024N04LS6ATMA1 - Infineon

Description: MOSFET TRENCH <= 40V

Download BSZ024N04LS6ATMA1 Model

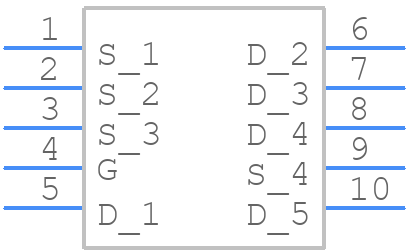

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BSZ024N04LS6ATMA1 - Infineon PCB footprint - Other - Other - BSZ024N04LS6ATMA1-2
click to zoom
3D Models
BSZ024N04LS6ATMA1 - Infineon  - 3D model - Other - BSZ024N04LS6ATMA1-2
click to zoom

BSZ024N04LS6ATMA1 Details

  • Manufacturer Part Number:

    BSZ024N04LS6ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    137 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    109 A

  • Drain-source On Resistance-Max:

    0.0034 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    19 pF

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    75 W

  • Pulsed Drain Current-Max (IDM):

    520 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

BSZ024N04LS6ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the BSZ024N04LS6ATMA1 is 175°C, as specified in the datasheet.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The maximum current rating of the BSZ024N04LS6ATMA1 is 24A, as specified in the datasheet. However, this rating is dependent on the device's operating temperature and the PCB's thermal design.
  • To protect the BSZ024N04LS6ATMA1 from overvoltage and overcurrent, a voltage clamp or a transient voltage suppressor (TVS) can be used. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
  • The recommended gate drive voltage for the BSZ024N04LS6ATMA1 is between 4.5V and 15V, as specified in the datasheet. A higher gate drive voltage can reduce the device's on-state resistance, but may also increase the risk of gate oxide damage.
