The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and ensuring good thermal conductivity between the pad and the heat sink. Additionally, it's recommended to use a 2-ounce copper layer and to avoid placing any thermal vias under the device.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device, and to ensure good thermal management by providing adequate heat sinking and airflow. Additionally, it's recommended to use a thermistor or thermal sensor to monitor the device temperature and take corrective action if it exceeds the recommended maximum operating temperature.
The recommended soldering conditions for the BT151-500C involve using a soldering iron with a temperature of 250°C to 270°C, and a soldering time of 3 to 5 seconds. It's also recommended to use a solder with a melting point of 217°C to 221°C, and to avoid applying excessive force or pressure during the soldering process.
To protect the BT151-500C from electrostatic discharge (ESD), it's recommended to handle the device in an ESD-controlled environment, and to use ESD-protective packaging and materials. Additionally, it's recommended to use an ESD wrist strap or mat when handling the device, and to avoid touching the device's pins or leads with bare hands.
The recommended storage and handling conditions for the BT151-500C involve storing the device in a dry, cool place with a temperature range of -40°C to 125°C, and a relative humidity of 60% or less. It's also recommended to handle the device in a clean and dust-free environment, and to avoid exposing it to direct sunlight or moisture.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BT151-500C Overview

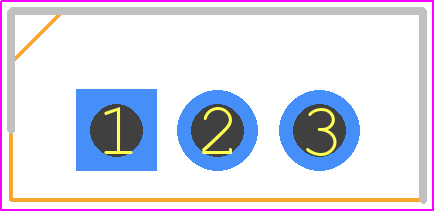

Use the download button to access the BT151-500C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BT151,
or try a keyword search, such as Silicon Controlled Rectifiers
