BT151-800R - WeEn Semiconductors

Description: WEEN SEMICONDUCTORS - BT151-800R - Thyristor, 800 V, 15 mA, 7.5 A, 12 A, TO-220AB, 3 Pins

Download BT151-800R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BT151-800R - WeEn Semiconductors - PCB symbol
click to zoom
PCB Footprints

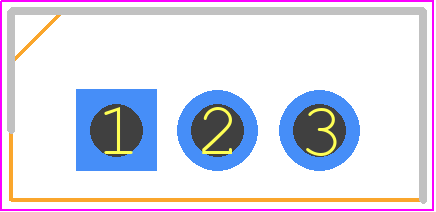

BT151-800R - WeEn Semiconductors PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - SOT78_2021
click to zoom
3D Models
BT151-800R - WeEn Semiconductors - 3D model - Transistor Outline, Vertical - SOT78_2021
click to zoom

BT151-800R Details

  • Manufacturer Part Number:

    BT151-800R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-46, 3 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Manufacturer:

    WeEn Semiconductor Co Ltd

  • YTEOL:

    6.43

  • Additional Feature:

    HIGH RELIABILITY

  • Case Connection:

    ANODE

  • Configuration:

    SINGLE

  • DC Gate Trigger Current-Max:

    15 mA

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • RMS On-state Current-Max:

    12 A

  • Reference Standard:

    IEC-60134

  • Repetitive Peak Off-state Voltage:

    800 V

  • Repetitive Peak Reverse Voltage:

    800 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Trigger Device Type:

    SCR

BT151-800R Frequently Asked Questions (FAQs)

  • The recommended operating frequency for the BT151-800R is up to 400 Hz, but it can be used at higher frequencies with proper cooling and derating.
  • To ensure safe operating area (SOA) for the BT151-800R, ensure that the device is operated within the recommended voltage and current ratings, and that the junction temperature is kept below 125°C.
  • The recommended gate current for the BT151-800R is typically in the range of 10-50 mA, but this can vary depending on the specific application and requirements.
  • Yes, the BT151-800R can be used in series or parallel configurations, but proper consideration must be given to voltage and current sharing, as well as thermal management.
  • The typical turn-on time for the BT151-800R is around 1-2 μs, and the typical turn-off time is around 5-10 μs, but these times can vary depending on the specific application and circuit design.
