- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BTA24-05S30D
- Part Number BTA24-05S30D
- Manufacturer Bellnix
- Pin Count 9
- Part Category Power Supply
- Package Category Other

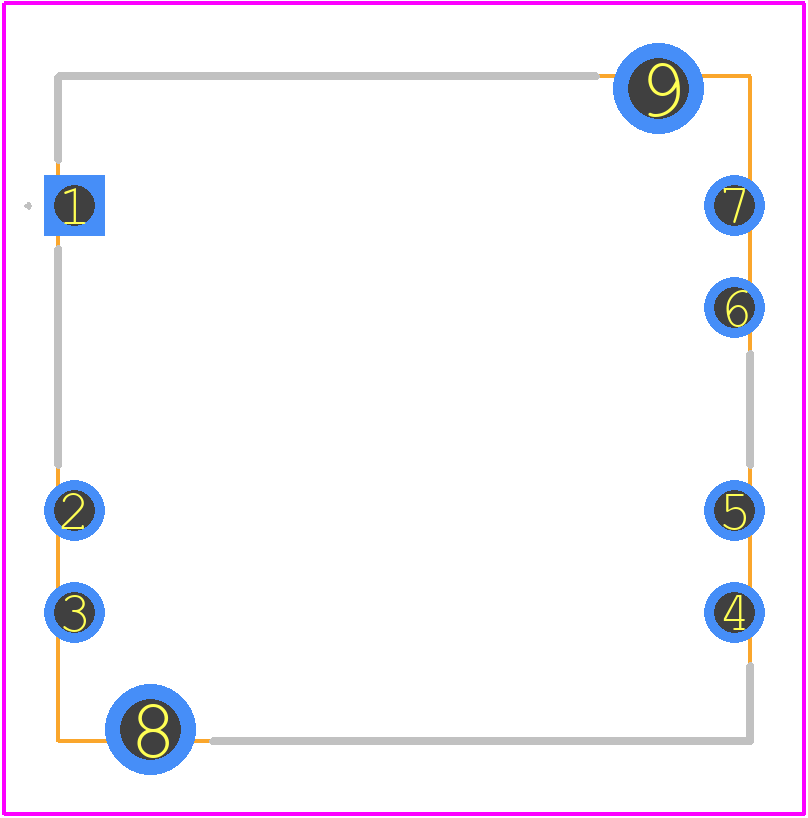

- Footprint Name Other - 17.3x16.6x8.5mm_2022
- Released Date Jul 27, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BTA24-05S30D Details
-
Manufacturer Part Number:
BTA24-05S30D
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
HALOGEN FREE AND ROHS COMPLIANT, METAL, DIP-11
-
ECCN Code:
EAR99
-
Manufacturer:
Bellnix Co Ltd
-
Additional Feature:
LG-MAX
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
-
Input Voltage-Max:
36 V
-
Input Voltage-Min:
18 V
-
Input Voltage-Nom:
24 V
BTA24-05S30D Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the BTA24-05S30D is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
-
To ensure safe operation of the BTA24-05S30D in high-voltage applications, it's crucial to follow proper PCB design and layout guidelines, provide adequate creepage and clearance distances, and use suitable insulation and protection components. Additionally, ensure that the device is operated within its specified voltage and current ratings.
-
The maximum allowable surge current for the BTA24-05S30D is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit the surge current to 10 times the maximum rated current (ITRM) for a duration of 10 ms or less. In this case, the maximum allowable surge current would be approximately 240 A (10 x 24 A).
-
The BTA24-05S30D is a triac designed for AC applications, and its performance in DC circuits is not guaranteed. While it may work in some DC circuits, it's not recommended to use the BTA24-05S30D in DC applications, as it may lead to unreliable operation, reduced lifespan, or even damage to the device.
-
The choice of gate resistor value for the BTA24-05S30D depends on the specific application and the desired triggering characteristics. A general guideline is to use a gate resistor value between 1 kΩ and 10 kΩ. However, it's recommended to consult the datasheet and application notes for more detailed guidance on selecting the optimal gate resistor value.
Trust Checks
Community Provided
System Verified
Community Approved
BTA24-05S30D Overview
Use the download button to access the BTA24-05S30D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTA24,
or try a keyword search, such as Power Supply Modules
