BTA40-600B - STMicroelectronics

Description: Std isolated tab triac,BTA40-600B 40A BTA40-600B STMicroelectronics, TRIAC, 600V 40A, Gate Trigger 1.3V 100mA, 3-Pin RD-91

Download BTA40-600B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BTA40-600B - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

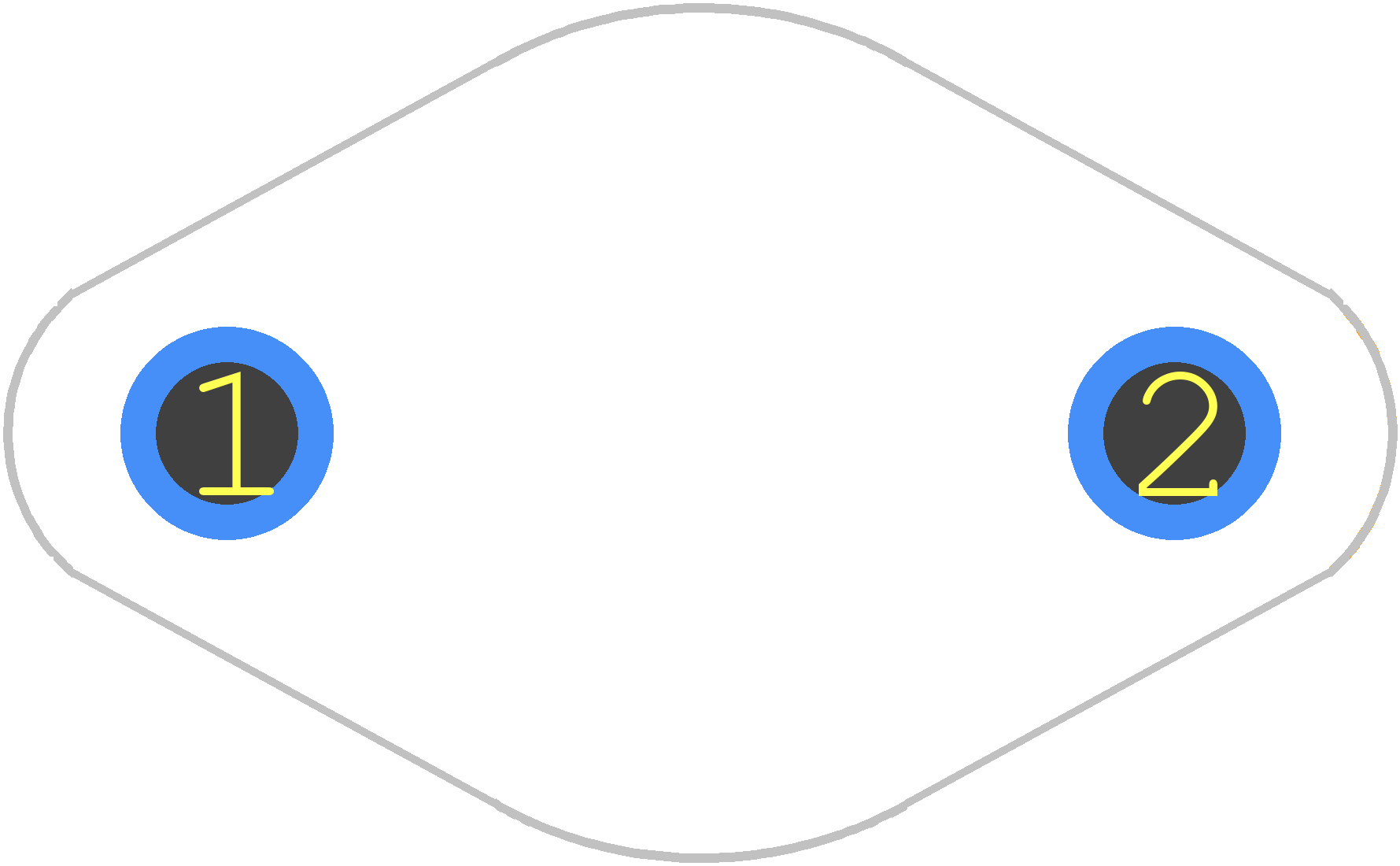

BTA40-600B - STMicroelectronics PCB footprint - Other - Other - RD91
click to zoom
3D Models
BTA40-600B - STMicroelectronics - 3D model - Other - RD91
click to zoom

BTA40-600B Details

  • Manufacturer Part Number:

    BTA40-600B

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RD91, 3 PIN

  • Pin Count:

    3

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • DC Gate Trigger Current-Max:

    100 mA

  • DC Gate Trigger Voltage-Max:

    1.5 V

  • Desc. of Quick-Connects:

    G-MT1-MT2

  • Desc. of Screw Terminals:

    0

  • Holding Current-Max:

    80 mA

  • JESD-30 Code:

    O-PUFM-D3

  • Non-Repetitive Pk On-state Cur:

    315 A

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RMS On-state Current-Max:

    40 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Nickel (Ni)

  • Terminal Form:

    SOLDER LUG

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Device Type:

    4 QUADRANT LOGIC LEVEL TRIAC

BTA40-600B Frequently Asked Questions (FAQs)

  • The BTA40-600B can handle a maximum surge current of 400A for 10ms, as specified in the datasheet. However, it's recommended to derate the surge current to 300A for 10ms to ensure reliable operation.
  • To ensure safe operation in high-temperature environments, it's essential to follow the recommended thermal management guidelines. Ensure good heat sinking, use a thermal interface material, and maintain a maximum junction temperature of 125°C.
  • The recommended gate current for reliable triggering of the BTA40-600B is 100mA to 200mA. This ensures consistent and reliable triggering, especially in high-noise environments.
  • Yes, you can use multiple BTA40-600B thyristors in a series configuration to increase the voltage rating. However, ensure that each device is properly matched and that the voltage sharing is even to prevent uneven stress and potential failure.
  • The recommended snubber circuit configuration for the BTA40-600B is a series R-C circuit with a resistance value of 10Ω to 20Ω and a capacitance value of 100nF to 220nF. This helps to reduce voltage transients and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTA40-600B Overview

Use the download button to access the BTA40-600B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTA40, or try a keyword search, such as TRIACs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
