BTB24-12S25S - Bellnix

Description: Isolated Module DC DC Converter 1 Output 12V 250mA 18V - 36V Input

Download BTB24-12S25S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

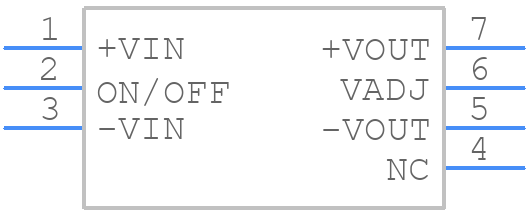

Symbol
BTB24-12S25S - Bellnix - PCB symbol
click to zoom
PCB Footprints
BTB24-12S25S - Bellnix PCB footprint - Other - Other - BTB24-12S25S-4
click to zoom
3D Models
BTB24-12S25S - Bellnix - 3D model - Other - BTB24-12S25S-4
click to zoom

BTB24-12S25S Details

  • Manufacturer Part Number:

    BTB24-12S25S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT, METAL, SMD-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bellnix Co Ltd

  • Additional Feature:

    OUTPUT VOLTAGE ALSO AVAILABLE IN 15 VOLT, LG-MAX

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-G7

  • Length:

    23.7 mm

  • Load Regulation-Max:

    0.85%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    8.8 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    YES

  • Width:

    16.6 mm

BTB24-12S25S Frequently Asked Questions (FAQs)

  • Bellnix recommends a PCB layout with a thermal pad size of at least 10mm x 10mm, and a minimum of 2oz copper thickness to ensure efficient heat dissipation.
  • Yes, the BTB24-12S25S is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 50G (11ms). However, it's recommended to consult with Bellnix's application engineers for specific vibration and shock requirements.
  • The maximum allowed case temperature for the BTB24-12S25S is 125°C. Operating above this temperature may reduce the device's lifespan and affect its performance.
  • The BTB24-12S25S is designed to operate in environments with a relative humidity of up to 95% (non-condensing). However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing and conformal coating.
  • Bellnix recommends storing the BTB24-12S25S in a dry, cool place with a temperature range of -20°C to 40°C and relative humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTB24-12S25S Overview

Use the download button to access the BTB24-12S25S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTB24, or try a keyword search, such as Power Supply Modules
