BTB24-12W12D - Bellnix

Description: Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input

Download BTB24-12W12D Model
Schematic

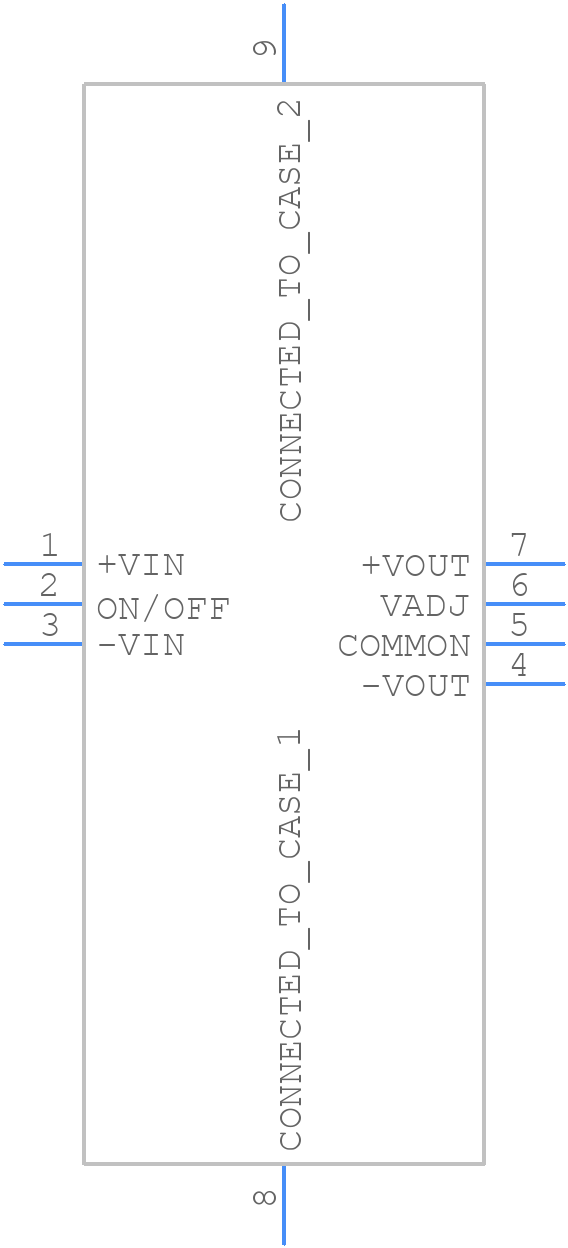

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

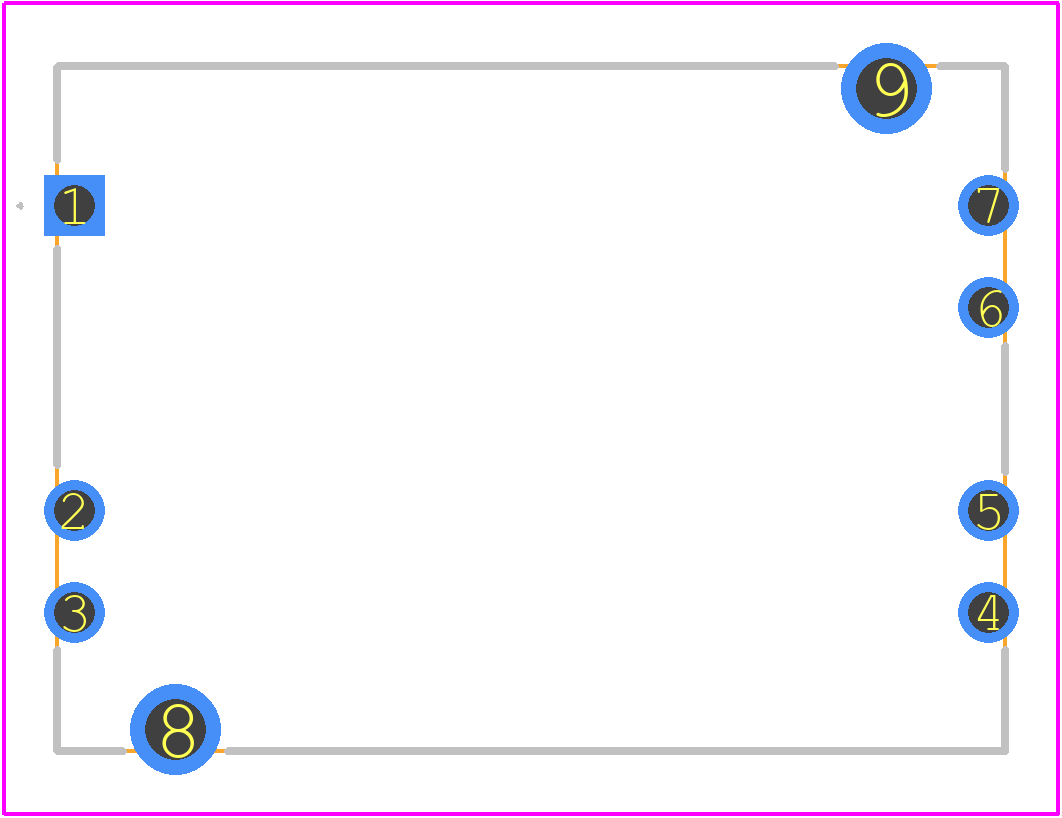

BTB24-12W12D - Bellnix PCB footprint - Other - Other - DIP 23.7*17.1*8.5mm
click to zoom
3D Models
BTB24-12W12D - Bellnix  - 3D model - Other - DIP 23.7*17.1*8.5mm
click to zoom

BTB24-12W12D Details

  • Manufacturer Part Number:

    BTB24-12W12D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT, METAL, DIP-11

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bellnix Co Ltd

  • Additional Feature:

    OUTPUT VOLTAGE ALSO AVAILABLE IN +15 V AND -15 V, LG-MAX

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-T11

  • Length:

    23.7 mm

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    11

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    8.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    YES

  • Width:

    16.6 mm
